Bench Rear Seat

Remove the bench rear seat. Refer to SEAT, REAR, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

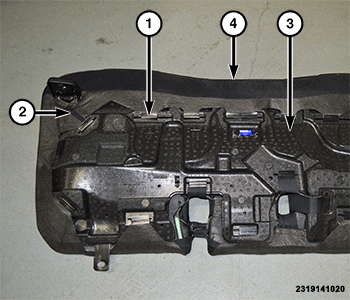

Release all the push retainers (1) from the cushion support (3) around the entire perimeter.
Release all the hook and loop strips (2) around the entire perimeter, then remove the cushion cover (4) and cushion foam as an assembly from the cushion support.

Courtesy of CHRYSLER GROUP, LLC

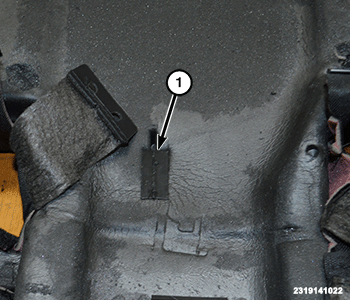

Unhook the center strap (1).

Courtesy of CHRYSLER GROUP, LLC

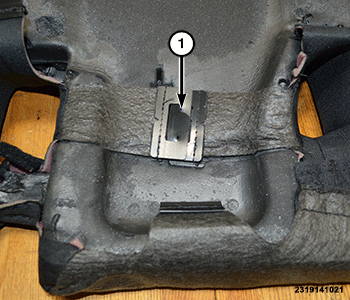

Push the center retainer (1) through the cushion foam.

Courtesy of CHRYSLER GROUP, LLC

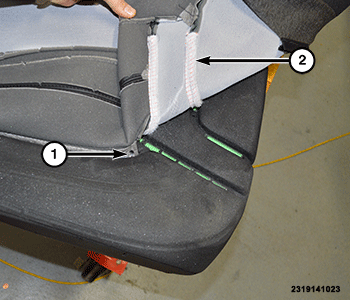

Pull the seat cushion cover (2) away from the cushion foam, releasing the hook and loop fasteners.
Cut all the hog rings (1) and remove the cushion cover.
