Handle, Front Recliner: Removal
WARNING:
Disable the airbag system before attempting any front seat diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, FRONT, WARNING .
- Position the seat full forward in vehicle.NOTE:
The seat does not need to be removed from vehicle to remove the handles.

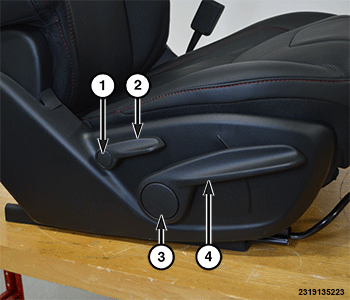

- Remove the fastener cover (3), then remove the fasteners, then the lift handle (4) if necessary.
- Using a small hook took, remove the clip from below the recline handle (2), then pull outward to remove.
