Audio Channel Mapping
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Proper diagnosis of the audio system will require the use of this Audio Channel Mapping in addition to using the Audio System wiring diagrams. The use of Audio Channel Mapping and sales codes are being used to quickly identify those differences in locations; and the total number of speakers in the audio system configurations noted below.

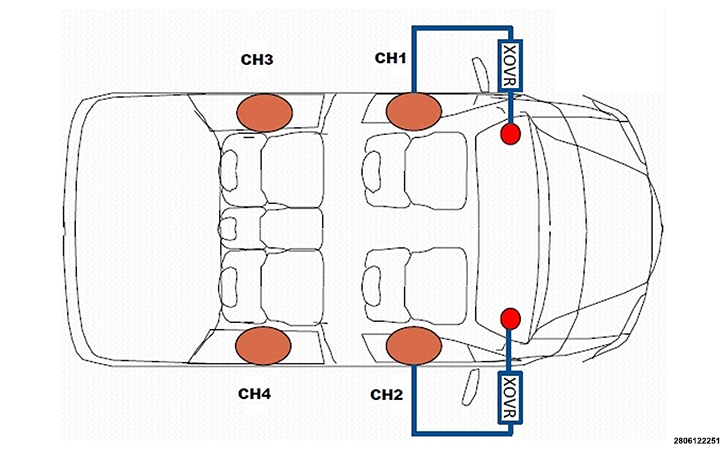

AUDIO SYSTEM CONFIGURATION - BASE
| With Sales Code | DESCRIPTION |
|---|---|
| RCG | 6 SPEAKERS |

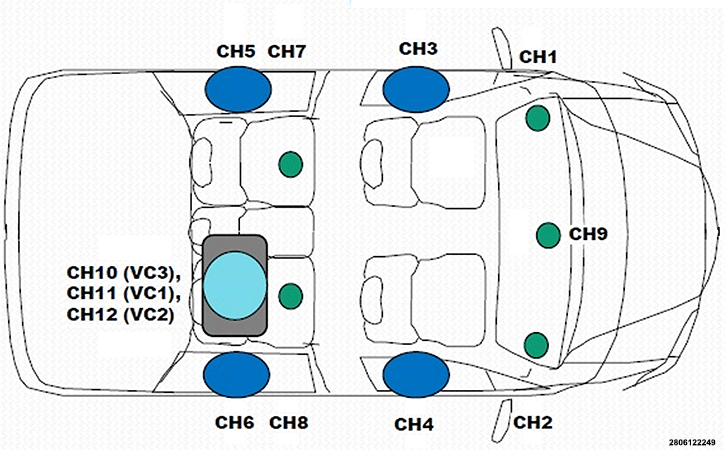

AUDIO SYSTEM CONFIGURATION - PREMIUM 2
| With Sales Code | DESCRIPTION |
|---|---|
| RC3 | 9 AMPLIFIED SPEAKERS W/SUBWOOFER |

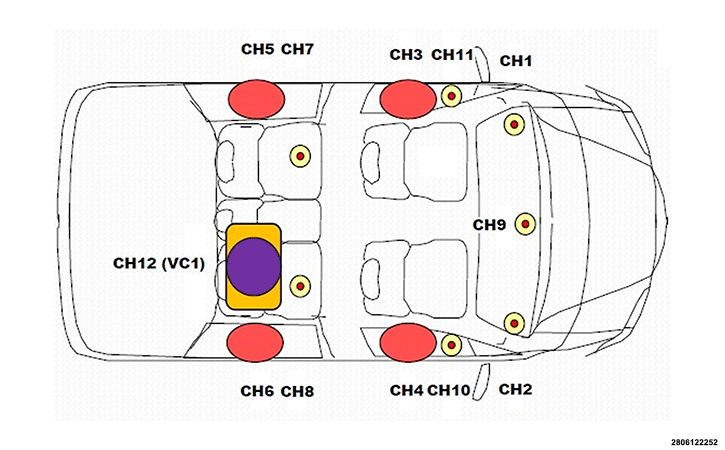

AUDIO SYSTEM CONFIGURATION - PREMIUM 3
| With Sales Code | DESCRIPTION |
|---|---|
| RCA | 19 SPKR HARMAN KARDON PREM. SOUND |
