Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

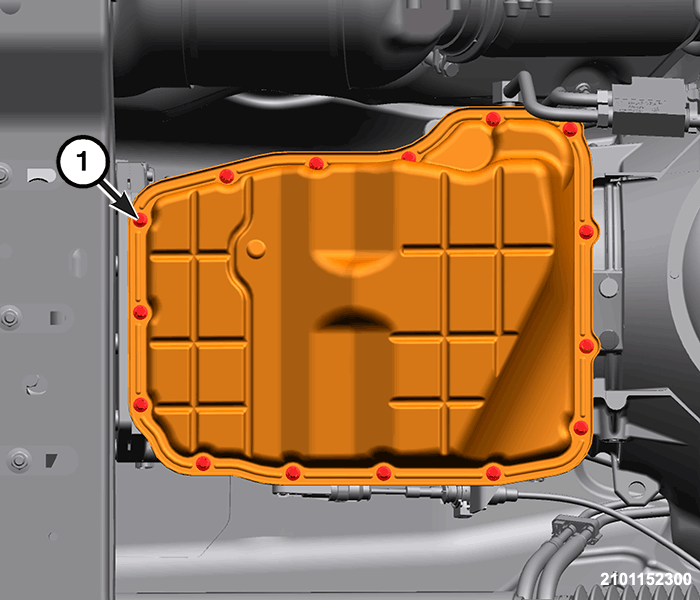

3. Position drain pan beneath transmission pan, and remove the 15 fasteners (1) from the transmission pan and remove the pan.

   Courtesy of CHRYSLER GROUP, LLC

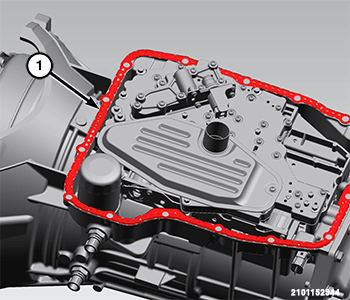

4. Remove the gasket (1) from the transmission and DISCARD  .

   Courtesy of CHRYSLER GROUP, LLC

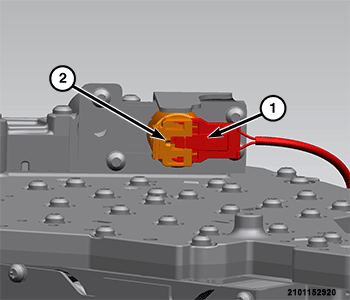

5. Disconnect the wire harness connector (1) from the solenoid (2).

   Courtesy of CHRYSLER GROUP, LLC

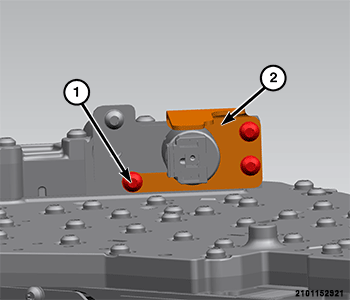

6. Remove the three solenoid bracket fasteners (1) and remove bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   The reverse accumulator bracket holds light spring pressure.

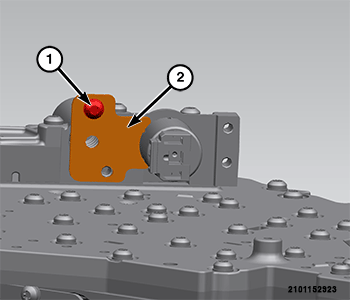

7. Support the reverse accumulator bracket (2), and loosen the retaining fastener (1).

   Courtesy of CHRYSLER GROUP, LLC

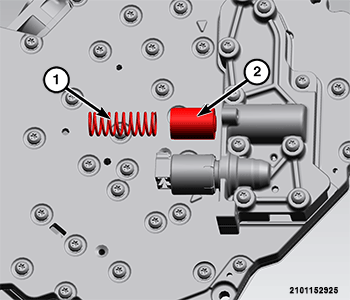

8. Remove the reverse accumulator spring (1) and piston (2). Note the orientation.

   Courtesy of CHRYSLER GROUP, LLC

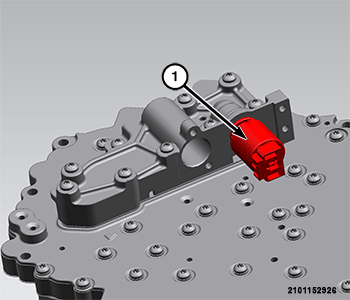

9. Remove the TCC solenoid (1) from the lower valve body.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

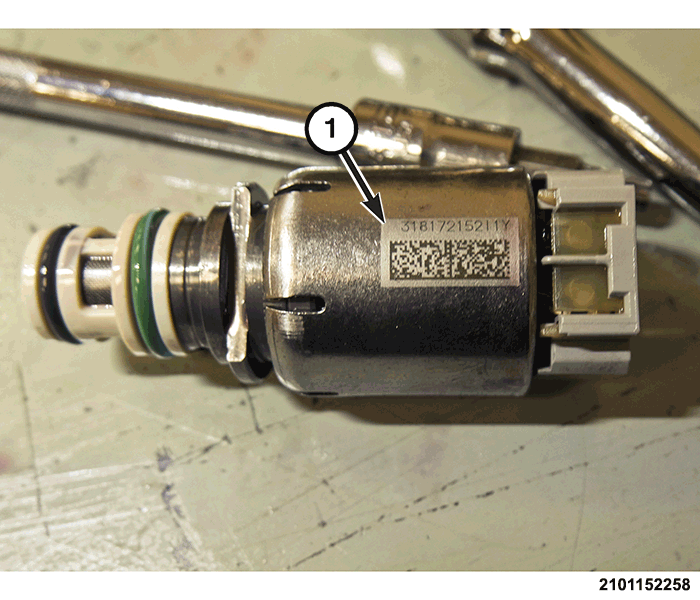

1. Using a QR code scanner or similar smartphone application, scan the unique barcode (1) on the solenoid. Record the output.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the solenoid (1) into the lower valve body.

   Courtesy of CHRYSLER GROUP, LLC

3. Install the spring (1) and reverse accumulator piston (2) into the lower valve body.

   Courtesy of CHRYSLER GROUP, LLC

4. Install the fastener (2), retaining the reverse accumulator bracket (1). Tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

5. Place the solenoid bracket and install the three fasteners (1). Tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

6. Connect the wire harness connector (1) to the solenoid (2).

   Courtesy of CHRYSLER GROUP, LLC

7. Install a NEW  gasket (1) on the transmission.

   Courtesy of CHRYSLER GROUP, LLC

8. Place transmission pan and install the 15 fasteners (1) tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
9. Fill transmission with fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
10. Remove the support and lower the vehicle.
11. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
12. Perform transmission programing procedure. Input saved data from the solenoid QR code.
    NOTE:

    Data input must be exact. Any deviation from the exact character string may result in poor transmission performance.
