Removal And Installation

REMOVAL

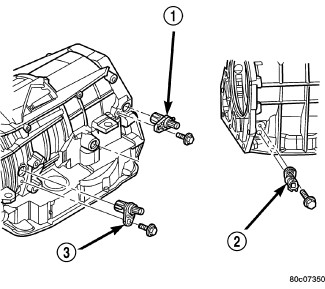

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Place a suitable fluid catch pan under the transmission.
3. Remove the wiring connector from the line pressure sensor (2).
4. Remove the bolt holding the line pressure sensor (2) to the transmission case.
5. Remove the line pressure sensor (2) from the transmission case.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the line pressure sensor (2) into the transmission case.
2. Install the bolt to hold the line pressure sensor (2) into the transmission case. Tighten the bolt to specifications. Refer to TORQUE SPECIFICATIONS .
3. Install the wiring connector onto the line pressure sensor (2).
4. Verify the transmission fluid level. Add fluid as necessary. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
5. Remove the support and lower the vehicle.
