Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Raise and support the vehicle, refer to HOISTING, STANDARD PROCEDURE .
2. Remove the transfer case skid plate, if equipped, refer to PLATE, SKID, TRANSFER CASE, REMOVAL AND INSTALLATION .

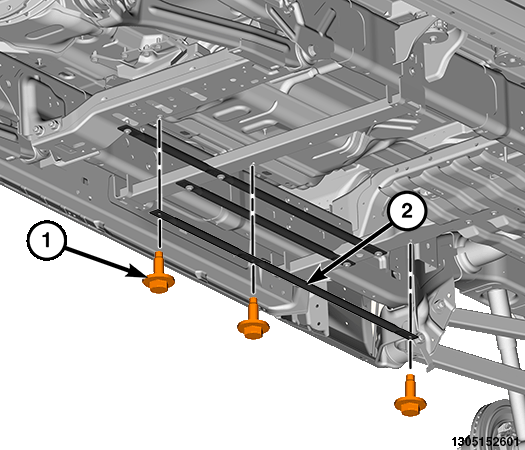

3. Remove the bolts (1) and remove the hanger brackets (2) as necessary.

   Courtesy of CHRYSLER GROUP, LLC

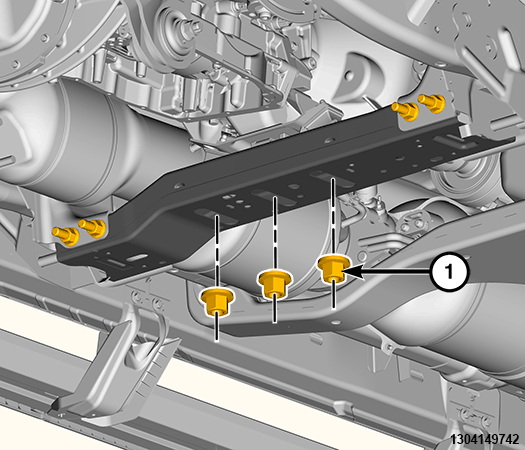

4. Remove the three nuts (1) securing the transmission mount to the crossmember.

   Courtesy of CHRYSLER GROUP, LLC

5. Using a suitable lifting device, raise and support the transmission.

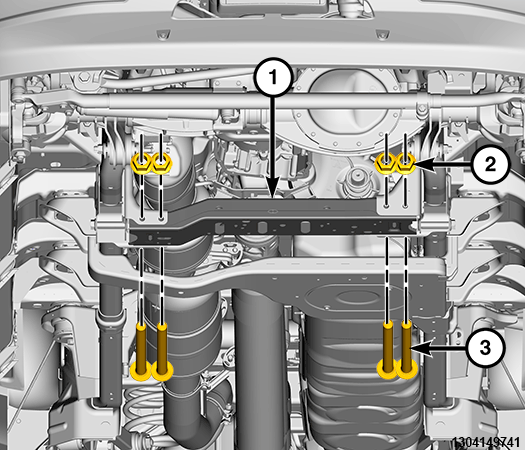

6. Remove the nuts (2) and bolts (3) and remove the crossmember (1).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Install the crossmember (1).
2. Install the bolts (3) and nuts (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Lower the transmission and install the three nuts (1) securing the transmission mount to the crossmember.
4. Tighten the nuts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

5. Install the hanger brackets (2), as necessary, and install the bolts (1).
6. Tighten the bolts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
7. Install the transfer case skid plate, if equipped, refer to PLATE, SKID, TRANSFER CASE, REMOVAL AND INSTALLATION .
