Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
If equipped, remove the skid plate. Refer to PLATE, SKID, FRONT SUSPENSION, REMOVAL AND INSTALLATION , PLATE, SKID, FUEL TANK, REMOVAL AND INSTALLATION or PLATE, SKID, TRANSFER CASE, REMOVAL AND INSTALLATION .
Mark a line across the axle companion flange, propeller shaft, flange yoke and transfer case for installation reference.

Courtesy of CHRYSLER GROUP, LLC

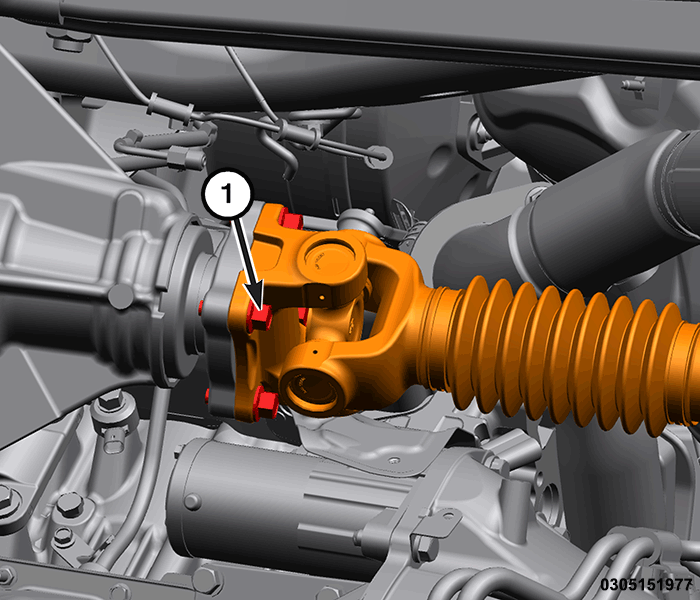

Remove the four bolts (1) from the front drive shaft.

Courtesy of CHRYSLER GROUP, LLC

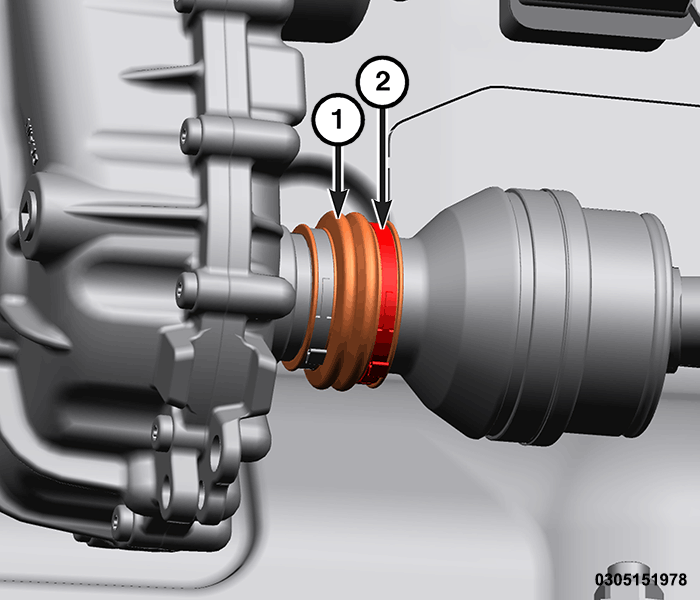

Using a suitable tool, cut the crimped clamp (2). Pull back the boot (1).

Courtesy of CHRYSLER GROUP, LLC

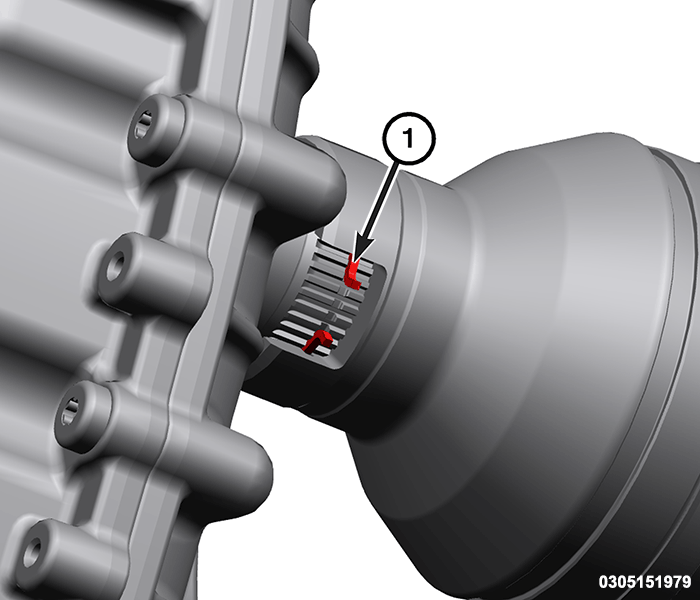

Using a snap ring plier, expand the snap ring (1) and remove driveshaft from vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

Using a snap ring plier, expand the snap ring (1) Install the front drive shaft to the transfer case.

Courtesy of CHRYSLER GROUP, LLC
Place the boot (1) over the connection and install a NEW crimped clamp (2).

Courtesy of CHRYSLER GROUP, LLC
Align the previously marked balance marks, and install the four bolts. Torque to proper specifications. Refer to TECHNICAL SPECIFICATIONS .
If equipped, install the skid plate. Refer to PLATE, SKID, FRONT SUSPENSION, REMOVAL AND INSTALLATION , PLATE, SKID, FUEL TANK, REMOVAL AND INSTALLATION or PLATE, SKID, TRANSFER CASE, REMOVAL AND INSTALLATION .
