Bezel, Instrument Panel, Center: Installation
CAUTION:
Due to the unique finish of the Integrated Center Stack (ICS), it is strongly advised that caution be taken during removal and installation for any diagnostics or repairs. Do NOT use any contaminated gloves, shop towels or harsh cleaning fluids while servicing or cleaning the ICS. If caution is not used, damage to the ICS may occur.
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to INSTRUMENT PANEL, WARNING .

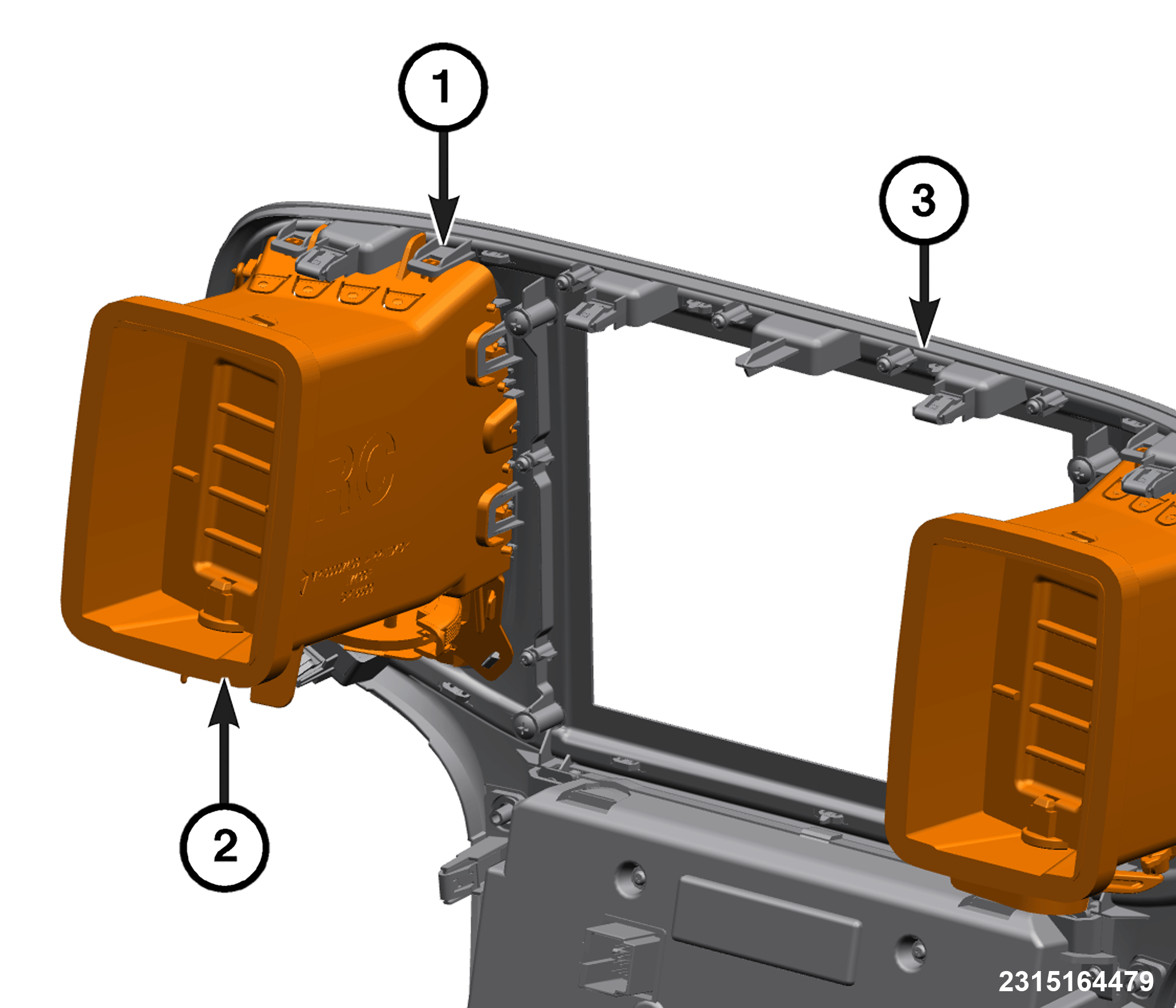

- If removed, insert the air duct(s) (2) to the instrument panel center bezel (3) and press firmly to fully engage the perimeter tabs (1).
- Position the instrument panel center bezel near the instrument panel and connect the wire harness connectors (1).
- Press firmly and evenly around the perimeter of the center bezel to seat the retaining clips fully into the instrument panel.
