Glass, Quarter: Removal: Notes
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to STATIONARY GLASS, WARNING .
- Remove the quarter panel trim from the side of the vehicle being serviced. Refer to PANEL, QUARTER TRIM, REMOVAL .CAUTION:
Be careful not to damage painted surfaces when removing moldings or cutting urethane around the windshield.

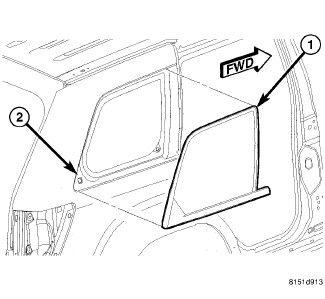

- Using razor knife, cut the urethane adhesive that secures the quarter glass to window fence (2).
- Carefully push the quarter window glass (1) from the opening.
