Overall Water Leaks Diagnosis And Testing

Courtesy of CHRYSLER GROUP, LLC

1. Check if top is latched at header and secure fully:

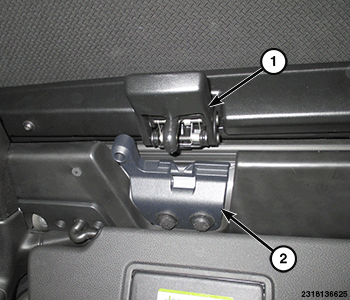

   1. From inside the vehicle, pull the handle (1) on the header latch downward to engage the hook into its receiver (2). Repeat on the other side.
   2. Pull the handle (1) back upward while squeezing the hook, locking the latch into place.

   Courtesy of CHRYSLER GROUP, LLC

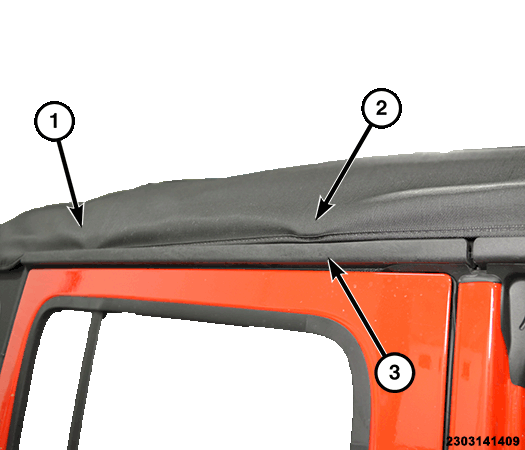

2. Check that the soft top is positioned in the door rail trough (3) correctly (1) and not hanging over the side (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Check 3 and 4 bow paddles, adjust and repair or replace as necessary

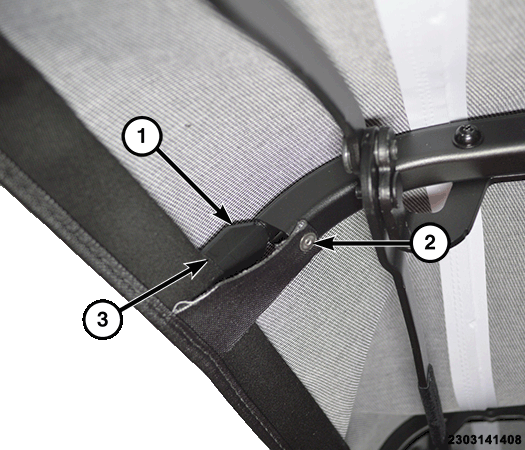

4. If the vehicle is equipped with plastic bow paddles (1) they should be replaced with updated metal paddles.
   1. Remove the rivet (2) and release the fabric.
   2. Pull the paddle (1) out of the fabric pocket (3) and remove from the bow.
   3. Install the new metal paddle (1) into the bow.
   4. Position the new paddle into the fabric pocket (3) and weave the tension cable through the fingers of the new paddle.

   Courtesy of CHRYSLER GROUP, LLC

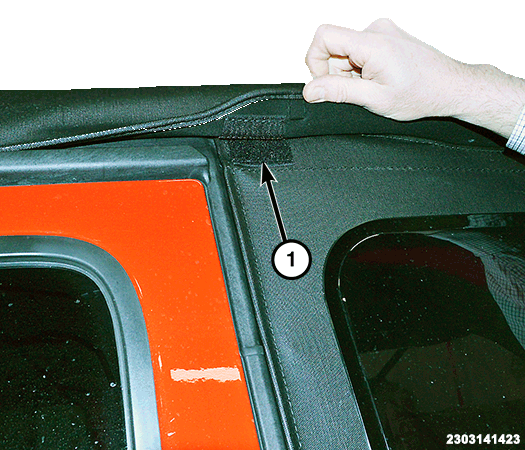

5. Check if Velcro from top cover to quarter window is attached

   Courtesy of CHRYSLER GROUP, LLC

6. Check if quarter window canards (2) are attached at rear door rail (1) and to j rail

   Courtesy of CHRYSLER GROUP, LLC

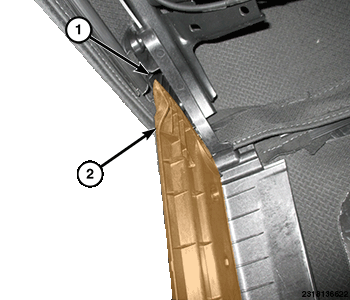

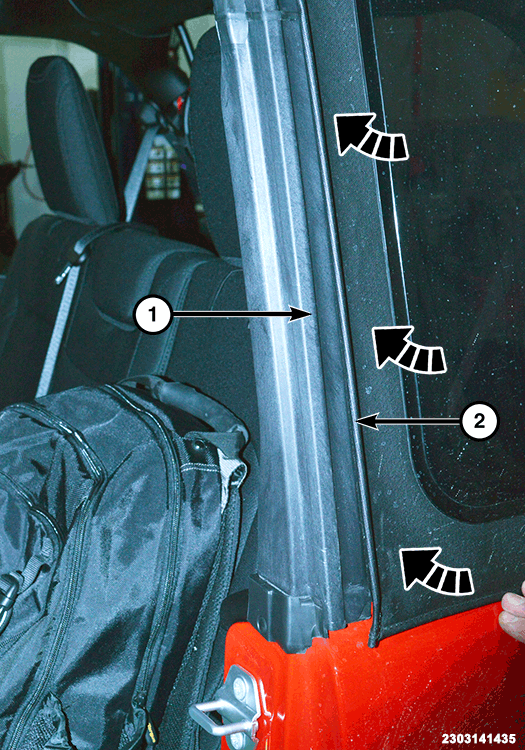

7. Check if D-pillar stiffener (2) is secured to top cover (1). and tailgate retainer clips

   Courtesy of CHRYSLER GROUP, LLC

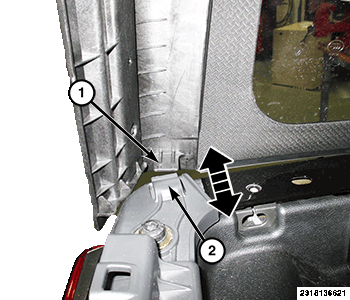

8. Check if D-pillar stiffener (1) is secured to the tailgate retainer clips (2).

   Courtesy of CHRYSLER GROUP, LLC

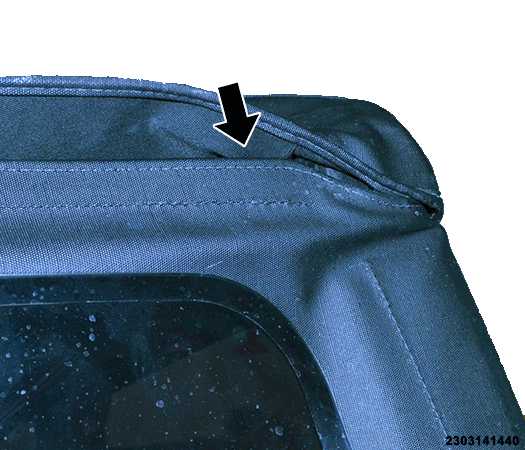

9. Check for gap between top cover and quarter window.

   Courtesy of CHRYSLER GROUP, LLC

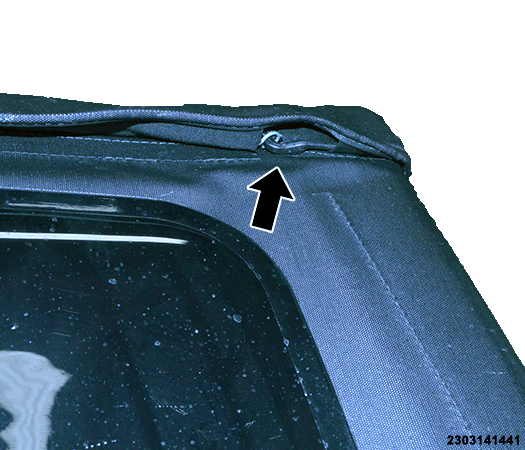

10. Make sure the quarter window is tucked up behind the spring retainer as shown in the illustration.

    Courtesy of CHRYSLER GROUP, LLC

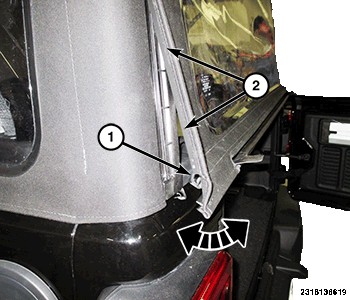

11. Check if rear window is secured to top cover, quarter window (2), and j-rail (1).
12. Check for spring attachment and orientation

Courtesy of CHRYSLER GROUP, LLC

1. Check if the A-pillar mucket (1) push pin fasteners (2) are fully engaged to door rail

   Courtesy of CHRYSLER GROUP, LLC

2. Check if foam (1) is attached to front door rail trough and even with the ridge (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Check that the front door rail foam (1) is present and undamaged.
4. Check the B-pillar mucket seal (3) is installed correctly with no gap at the B-pillar (2) and seated fully up against the door rails.

   Courtesy of CHRYSLER GROUP, LLC

5. With the top folded back check and replace the foam seal on the header bow.

   Courtesy of CHRYSLER GROUP, LLC

6. Slide the new foam (1) up under the fabric (2) and seat fully.

Courtesy of CHRYSLER GROUP, LLC

1. Rubber extrusion seal damaged or installed incorrectly (if equipped)

   Courtesy of CHRYSLER GROUP, LLC

2. C-pillar J-rail Mucket Leak, replace if necessary.

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the bolts (4), lower the brackets (1) and remove the door rail assembly (2).
4. Check the foam seal (3) is present and not damaged, replace if needed.
5. Replace the mucket seal and install the door rail (2).

   Courtesy of CHRYSLER GROUP, LLC

6. Rear Door Frame Mucket Leak

   Courtesy of CHRYSLER GROUP, LLC

7. Check if threads are showing from 2 vertical fasteners at rear door rail joint

   Courtesy of CHRYSLER GROUP, LLC

8. If threads are not showing, check for movement between upper and lower door rail and tighten the screws securely.

   Courtesy of CHRYSLER GROUP, LLC

9. Check if foam is installed at joint shown in illustration (requires removing 3 fasteners from door rail) repair or replace as necessary.

   Courtesy of CHRYSLER GROUP, LLC

10. Remove the three J-rail retaining screws (1).

    Courtesy of CHRYSLER GROUP, LLC

11. Remove the J-rail (1) from the door rail (2) and install new foam on the bottom before installing back.

Courtesy of CHRYSLER GROUP, LLC

1. If equipped, check if foam is present at bottom of rear window stiffener and replace if needed.

Courtesy of CHRYSLER GROUP, LLC

Windshield Header Foam/Butyl Replacement (change to spear foam)

• Replaces usage of L-Foam, Butyl Chicklet, and Razer foam
• Improves manufacturability, water sealing, and wind noise capabilities
• 4 mm Ebony ESL 600 material
• Butyl backing (adhesive)
• LH and RH mirrored parts

Courtesy of CHRYSLER GROUP, LLC

1. Using a small punch (2) or equivalent, remove the seal rivets (1) and lift the end of the seal out of the way.

   Courtesy of CHRYSLER GROUP, LLC

2. Remove L shaped foam (1), butyl patch (2) and lower razor foam (3) and clean all surfaces fully prior to installation of the new spear foam.

   Courtesy of CHRYSLER GROUP, LLC

3. Begin installation by placing the spear foam (2) onto the windshield frame.
   1. Start at the tip of the foam (1).
   2. Place tip into radius of windshield frame (1) as shown in illustration.
   3. Foam corner (3) sits parallel with windshield header bathtub (4).

   Courtesy of CHRYSLER GROUP, LLC

4. Seat the remaining foam around the header of the windshield frame maintaining a tight even gap to the forward edge of the frame (1).
5. Make sure foam is fully seated to windshield frame along the radius to avoid pocketing under the foam (2) that can allow water to pass.

   Courtesy of CHRYSLER GROUP, LLC

6. Make sure header seal (1) is positioned evenly side to side (2).

   Courtesy of CHRYSLER GROUP, LLC

7. Make sure header seal is fully seated in the windshield frame and foam (1) is not visible between frame and seal. If visible, pull end of header seal forward.

   Courtesy of CHRYSLER GROUP, LLC

8. Install the new rivets (2).
   NOTE:

   A slight bit of the spear foam should protrude from the lower feathered edge of the seal (1) when properly installed.

Courtesy of CHRYSLER GROUP, LLC

1. Check windshield frame panel seam sealer (1) using shop air and soap test. Using a paintable repair sealer Part No. 04318026AB or equivalent, repair as needed.

   Courtesy of CHRYSLER GROUP, LLC

2. Check windshield urethane (1) for voids or gaps using soap and air.

   Courtesy of CHRYSLER GROUP, LLC

3. Check drain tube (1) for damage and make sure boot (2) is secured to drain trough properly.

   Courtesy of CHRYSLER GROUP, LLC

4. Check drain trough for sealer skips or voids with water bottle test.

   Courtesy of CHRYSLER GROUP, LLC

5. Inspect the trough end cap for sealer voids, cracks or damage.
