Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

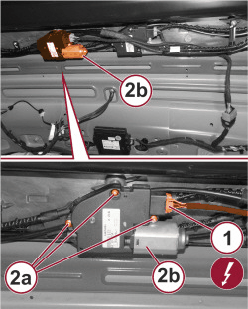

GC0180734Courtesy of CHRYSLER GROUP, LLC
  1. Place the sunshade motor (2b) in position and engage the gear into the mechanism.
  2. Install the mounting fasteners (2a) and tighten securely.
  3. Connect the sunshade motor wire harness connector (1).
  4. Install the headliner. Refer to HEADLINER, INSTALLATION .
  5. Perform the sunshade initialization procedure. Refer to STANDARD PROCEDURE .
