Description And Operation: Operation: Notes

In the rear part of the sunroof there are two electric motors, with simple electronics, to manage the sunroof functions such as automatic opening and anti-pinch.

The BCM controls the intensity of the lighting for the switch panel on the front roof light. Depending on the position of the switch, an earth signal is sent to the electronic circuit of the blind or roof movement motor, to identify the type of command requested: opening, closing or swivel position (VENT).

The switch position signals for opening and closing, along with the vehicle speed signals, panel-operated supply +15 and direct battery supply +30 reach the electronic circuit of the two roof movement motors.

The electronic circuit installed on the sunroof movement motors manages, in addition to movement, the anti-pinch function. To do this they need to recognize the sunroof and blind limit switches.

Electric sunroof limit switch initialization procedure  - Following an automatic motion malfunction while opening/closing or an emergency maneuver, the automatic operation of the sunroof must be initialized again.

Proceed as follows:

• move the sunroof to fully closed position;
• move the ignition switch to STOP and keep it there for 10 seconds;
• bring the ignition switch to RUN;
• press the sunroof movement button to the CLOSE position;
• press the button for at least 10 seconds, then you should hear the mechanical stop of the sunroof motor;
• press the sunroof movement button to the CLOSE position again within 5 seconds;
• hold the sunroof movement button down: in this position, the sunroof will perform an automatic opening and closing cycle. Otherwise, repeat the operations starting from the beginning;
• hold the sunroof movement button down until the sunroof is completely closed: the initialization procedure has ended.

Courtesy of CHRYSLER GROUP, LLC

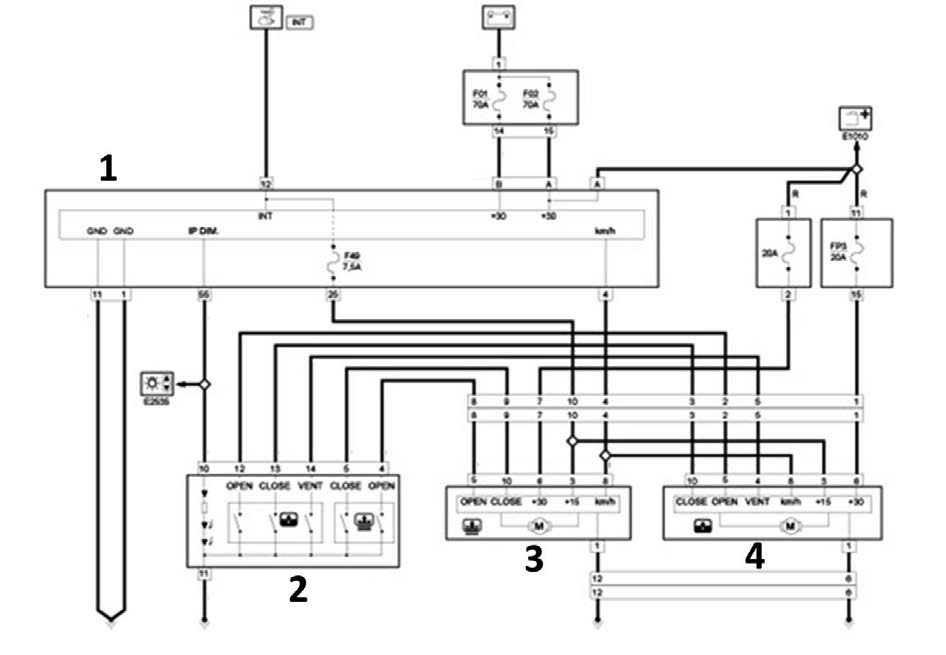

KEY

1. BCM
2. Switch panel on overhead console light
3. Blind movement motor
4. Sunroof movement motor

Switch panel pinout

• Pin 4 blind opening signal
• Pin 5 blind closing signal
• Pin 10 lighting regulation power supply
• Pin 11 Earth
• Pin 12 sunroof opening signal
• Pin 13 sunroof closing signal
• Pin 14 swivel position signal

Blind movement motor panel pinout

• Pin 1 earth
• Pin 3 +15
• Pin 5 blind opening signal
• Pin 6 +30
• Pin 8 vehicle speed
• Pin 10 blind closing signal

Sunroof movement motor panel pinout

• Pin 1 earth
• Pin 3 +15
• Pin 4 swivel position signal
• Pin 5 sunroof opening signal
• Pin 6 +30
• Pin 8 vehicle speed
• Pin 10 sunroof closing signal

Courtesy of CHRYSLER GROUP, LLC

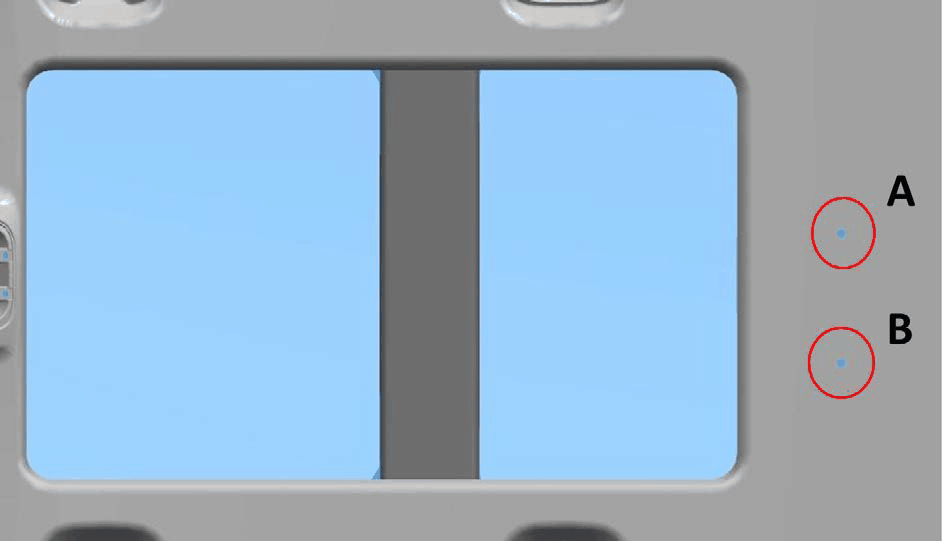

Emergency closing  - If the control buttons fail to operate, the sun blind and the sunroof can be moved manually, proceeding as described below:

• Sun blind movement: remove protective cap A on the internal trim;
• Sunroof movement: remove protective cap B on the internal trim;
• Insert the Allen key into housing A (to move the blind) or B (to move the sunroof) and insert it in the movement wheel fitted on the engine assembly. Rotate the Allen key clockwise to open the roof (or the blind) or counter-clockwise to close the sunroof (or the blind).
