Description - MYSKY

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

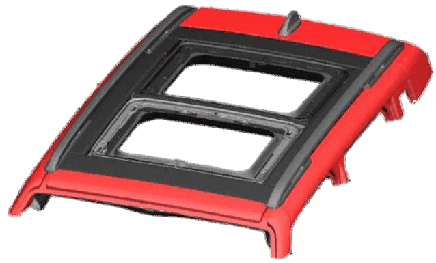

GC0169100Courtesy of CHRYSLER GROUP, LLC

The MySky™ sunroof is a new and exclusive sunroof concept, specially developed for this vehicle. The sunroof has two panels, a front and a rear one, that can be individually or simultaneously removed, depending on the occupants' choice.

The panels are made of a special material that can guarantee total soundproofing of the passenger compartment, is lightweight, and has optimal resistance and high rigidity.

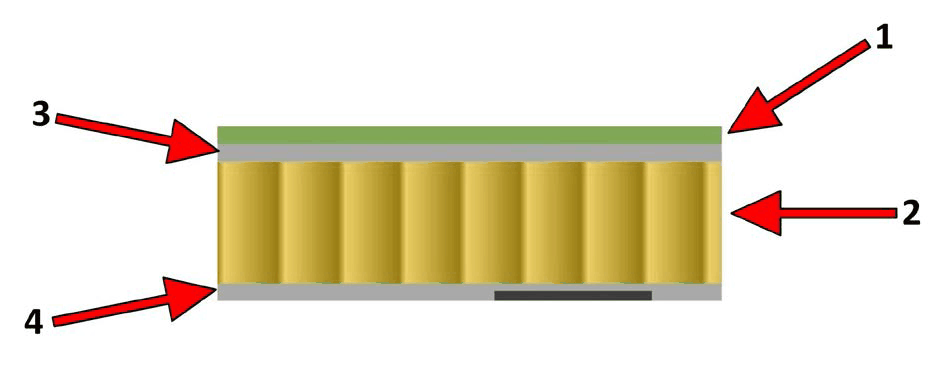

GC0169524Courtesy of CHRYSLER GROUP, LLC

KEY

  1. Granular film application
  2. Fiberglass
  3. Honeycomb cardboard
  4. Fiberglass

The panels are made of a lightweight material which is perfectly resistant to atmospheric agents, such as rain, hail, wind, etc.

Front and rear panels are distinguished by a dedicated symbol on the bottom of the panels themselves.

On some versions, the front panel might be electrically operated.

Regardless of the type of panel movement, both can be removed independently.
