Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.

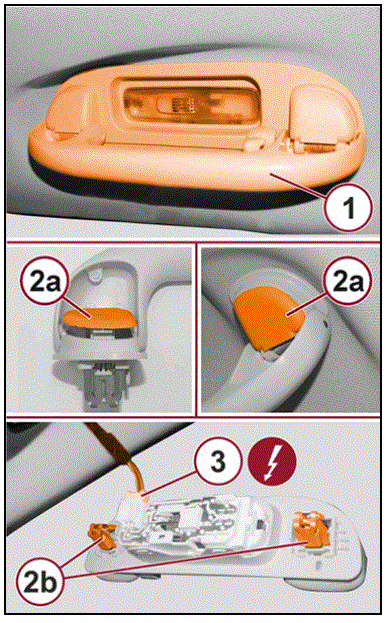

- Lower the handle (1).
- Disengage the covers (2a) and use a suitable tool to release the retainers (2b).
- Disconnect the wire harness connector (3).

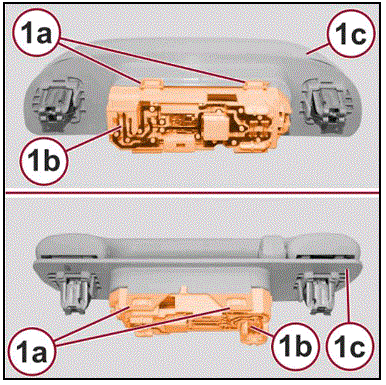

- Extract the side courtesy lamp (1b) from the grab handle (1c) by releasing the clips (1a).
- If needed, to replace the bulb, lift up on the cover (1a) and release the retainers (1b).
- Remove the bulb (2) from the socket.
