Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the seat cushion and cover. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL .

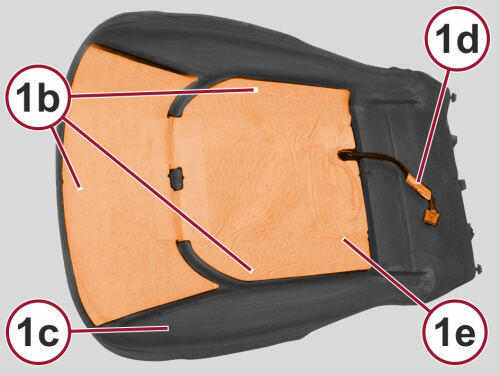

    GC0165247Courtesy of CHRYSLER GROUP, LLC
  3. Remove the heating pad (1e) by detaching the adhesive surfaces (1b) and (1c) and disengaging the wiring (1d).
  4. If the adhesive starts peeling off the adhesive surfaces (1b) of the heating pad, replace the heating pad.
