2.4L MULTIAIR: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

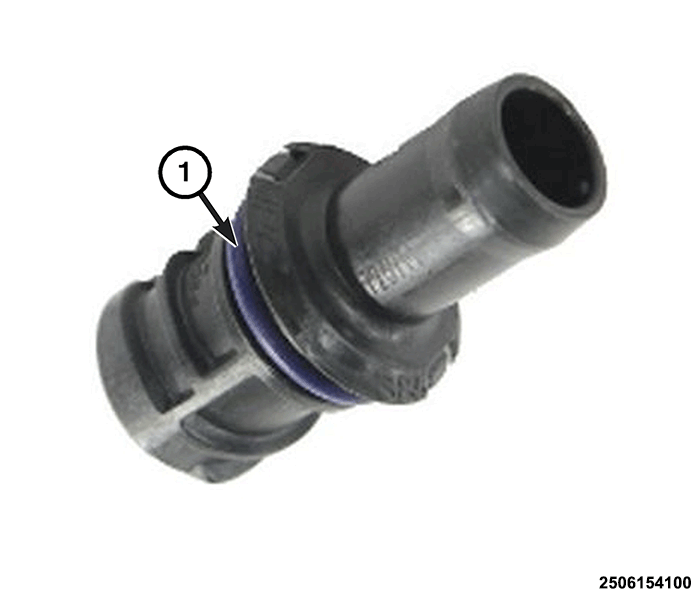

GC0187119Courtesy of CHRYSLER GROUP, LLC
  1. Lubricate the O-ring seal (1) on the Positive Crankcase Ventilation (PCV) valve.

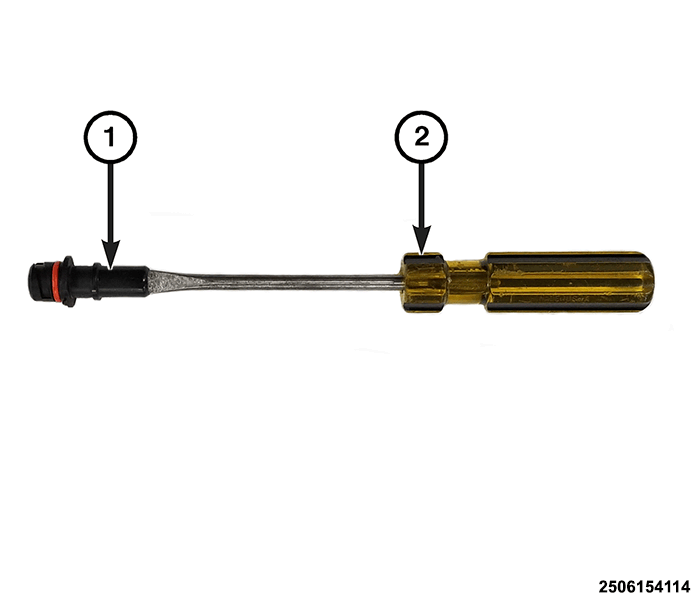

    GC0187080Courtesy of CHRYSLER GROUP, LLC
  2. Use a screwdriver (2) to engage the internal ribs of the PCV valve (1).

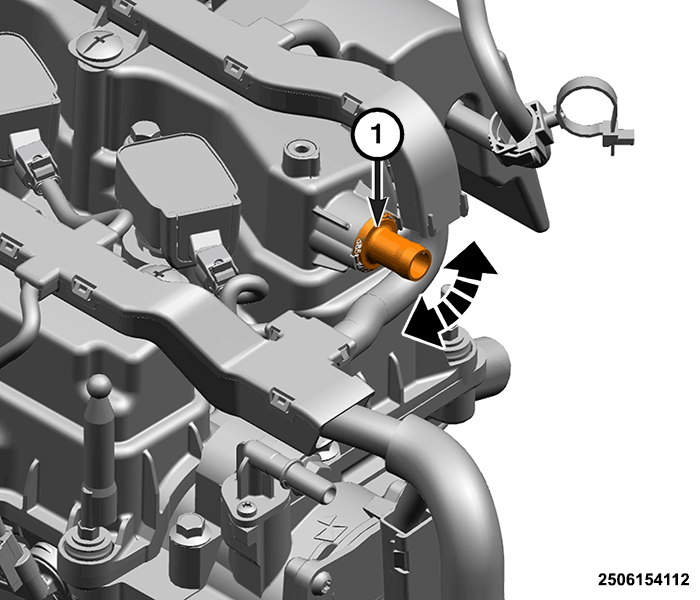

    GC0186432Courtesy of CHRYSLER GROUP, LLC
  3. Rotate the PCV valve (1) clockwise and install the PCV valve to the cylinder head cover.

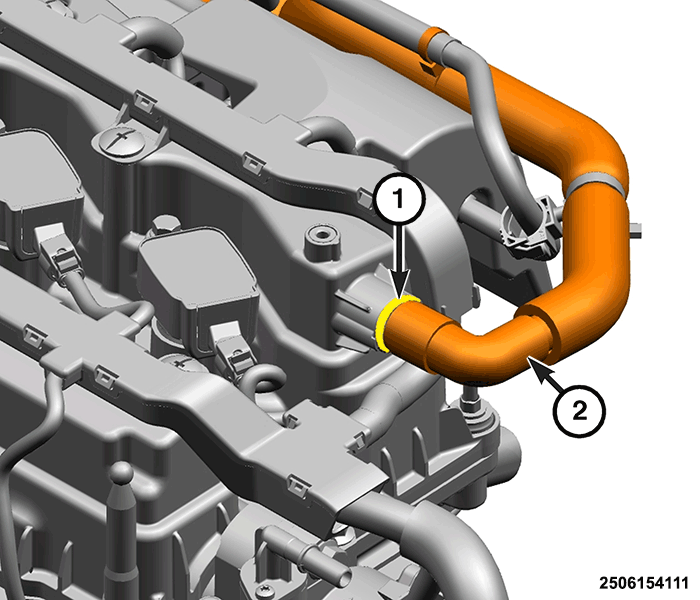

    GC0187021Courtesy of CHRYSLER GROUP, LLC
  4. Install the hose (2) onto the PCV valve (1).
  5. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
