Two Instrument Panel Cluster (IPC) trim levels can be installed on the vehicle.

Courtesy of CHRYSLER GROUP, LLC

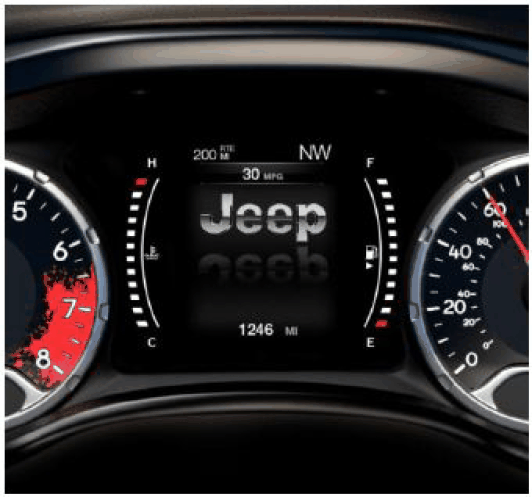

3.5 inch Electronic Vehicle Information Center (EVIC)

The display is designed using the Thin Film Transistor (TFT) technology and is positioned in the center of the instrument panel. To access the EVIC menu use the EVIC control switch on the left steering wheel spoke.

Examples of the possible menus within the 3.5 inch EVIC are shown below:

Menu	Submenu

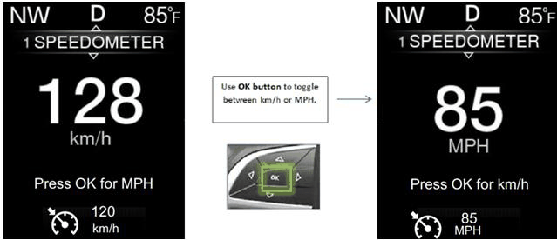

Digital speed	MPH or km/h	Courtesy of CHRYSLER GROUP, LLC

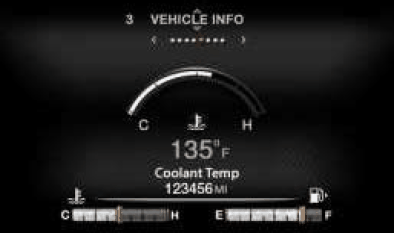

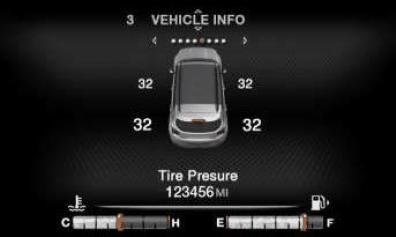

Vehicle information	Tire pressure Water temperature Transmission fluid temperature Fluid temperature Battery voltage Service	Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

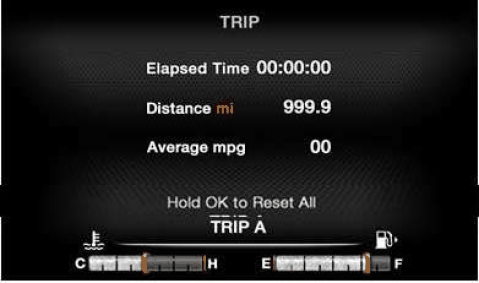

Trip A	Distance Average speed Time elapsed	Courtesy of CHRYSLER GROUP, LLC
Trip B	Distance Average speed Time elapsed	Courtesy of CHRYSLER GROUP, LLC
Fuel Economy	Instant consumption Average consumption Mileage from refueling	Courtesy of CHRYSLER GROUP, LLC
Drive assist	LDW function display	Courtesy of CHRYSLER GROUP, LLC
Audio	Source currently used	Courtesy of CHRYSLER GROUP, LLC

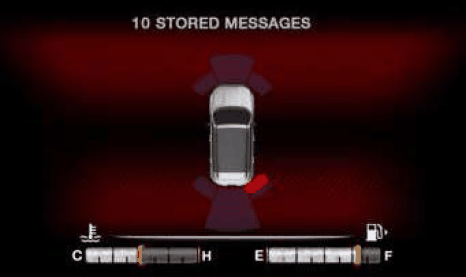

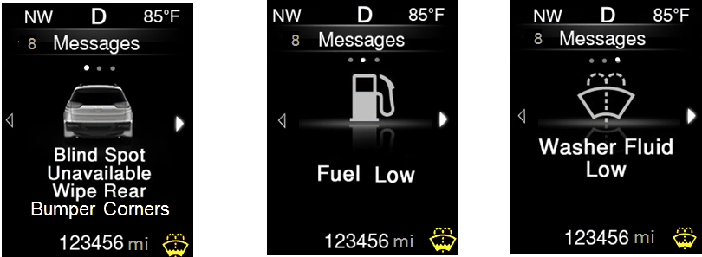

Stored messages	Example: Low fuel level	Courtesy of CHRYSLER GROUP, LLC

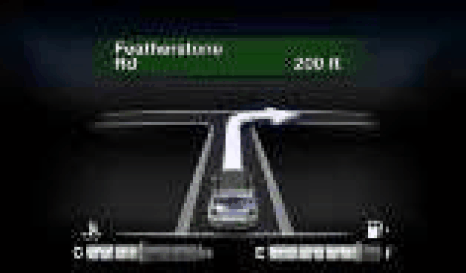

Navigation	Direction display	Courtesy of CHRYSLER GROUP, LLC

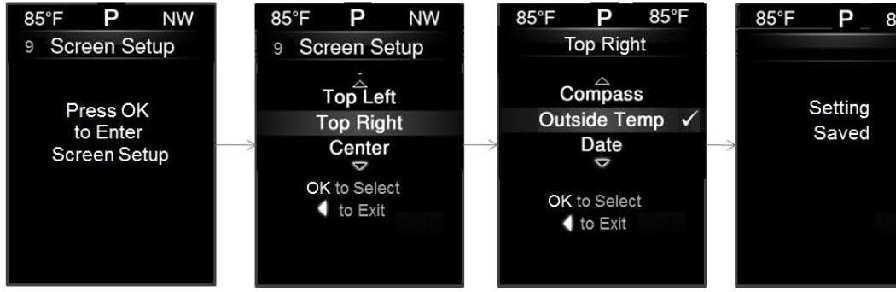

Screen set-up	Available when the vehicle is not moving. Allows you to change the position of some values on the EVIC.	Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

7 inch DID (Drive Information Display)

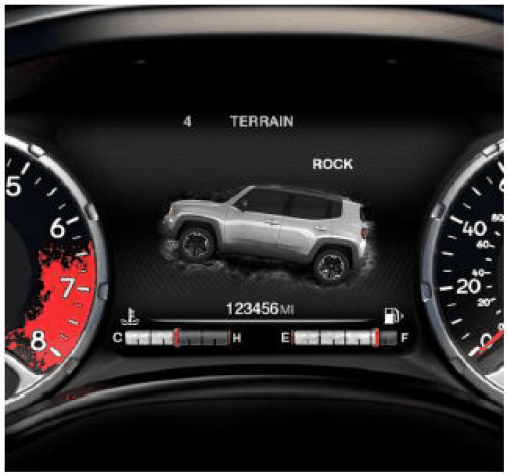

The vehicle can be equipped with a 7 inch display, made with Liquid Crystal Display (LCD) technology. The display offers a clear, full-color image and perfectly integrates with the analogue instruments of the instrument panel. The DID allows a wide range of settings.

Examples of the possible menus available in the Europe-Middle East-Africa (EMEA) market with the 7 inch DID screen are shown below:

Menu	Submenu

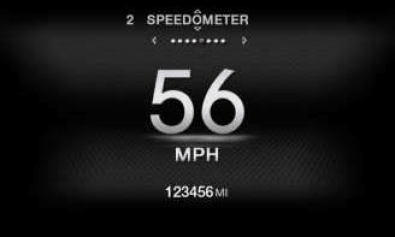

Digital speed	MPH or km/h	Courtesy of CHRYSLER GROUP, LLC

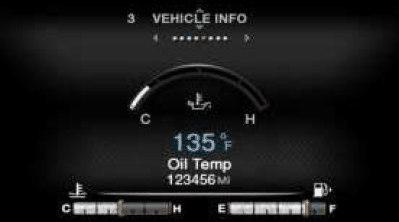

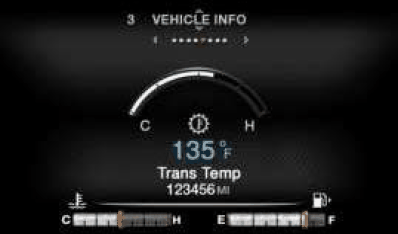

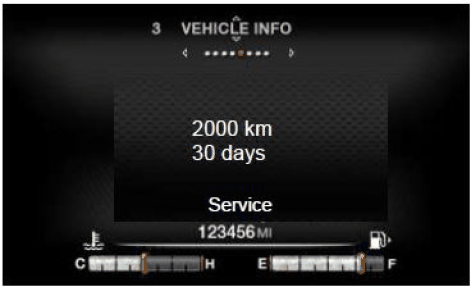

Vehicle information	Tire pressure Water temperature Transmission fluid temperature Fluid temperature Battery voltage Service	Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLCCHRYSLER GROUP, LLC

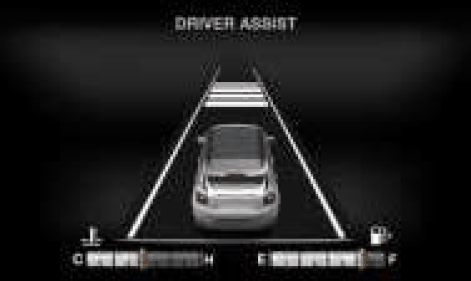

Driver Assist	Display of the active functions	Courtesy of CHRYSLER GROUP, LLC

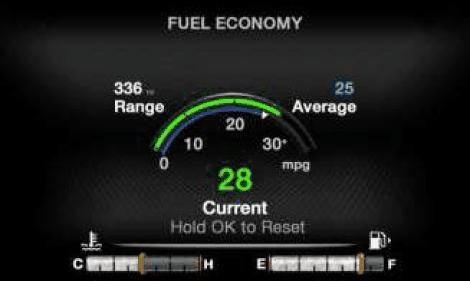

Fuel Economy	Instant consumption Average consumption Mileage from refueling	Courtesy of CHRYSLER GROUP, LLC
Trip A	Distance Average speed Time elapsed	Courtesy of CHRYSLER GROUP, LLC
Trip B	Distance Average speed Time elapsed	Courtesy of CHRYSLER GROUP, LLC

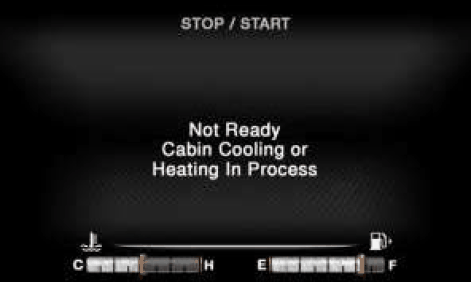

Stop/Start	if present - EMEA	Courtesy of CHRYSLER GROUP, LLC

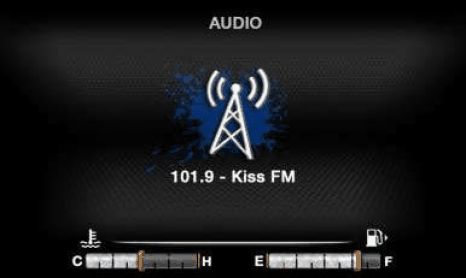

Audio	Source currently used	Courtesy of CHRYSLER GROUP, LLC
Navigation and phone	Message reception	Courtesy of CHRYSLER GROUP, LLC
Stored messages	Example: "Oil change request"	Courtesy of CHRYSLER GROUP, LLC

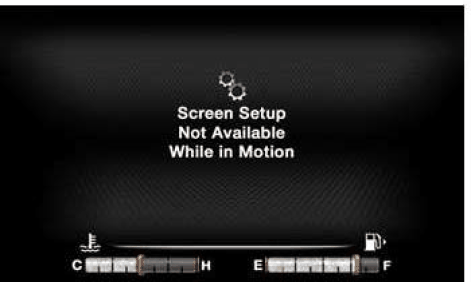

Screen set-up	Available when the vehicle is not moving.	Courtesy of CHRYSLER GROUP, LLC
Vehicle settings	Available in the menu

The display options of the EVIC can be navigated and selected using the EVIC control switches located on the left steering wheel spoke. For more information refer to the vehicle's owner manual.

The EVIC electronic display unit is integral to the IPC. If the EVIC is damaged or ineffective, the entire IPC must be replaced. Refer to REMOVAL AND INSTALLATION .
