Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .

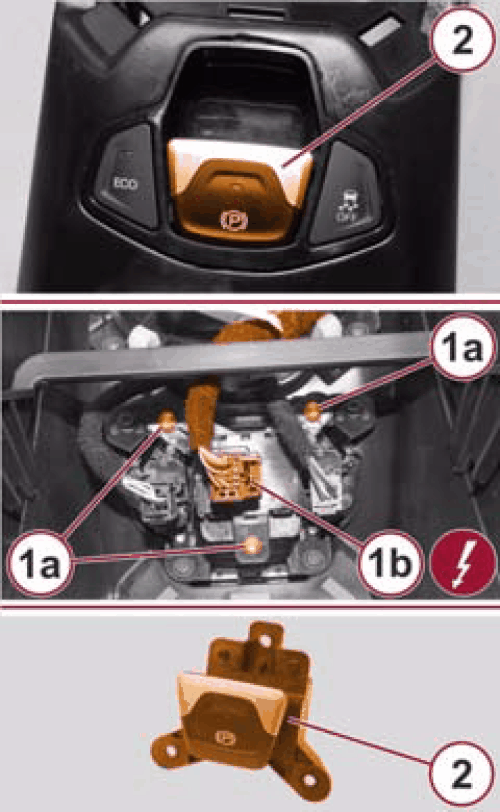

    GC0169518Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (1a) and disconnect the Electric Park Brake (EPB) switch electrical connector (1b).
  4. Remove the EPB switch (2) from the floor console.
