Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .
    GC0188683Courtesy of CHRYSLER GROUP, LLC
  3. Remove the caliper to caliper adaptor fasteners (1).
    GC0190214Courtesy of CHRYSLER GROUP, LLC

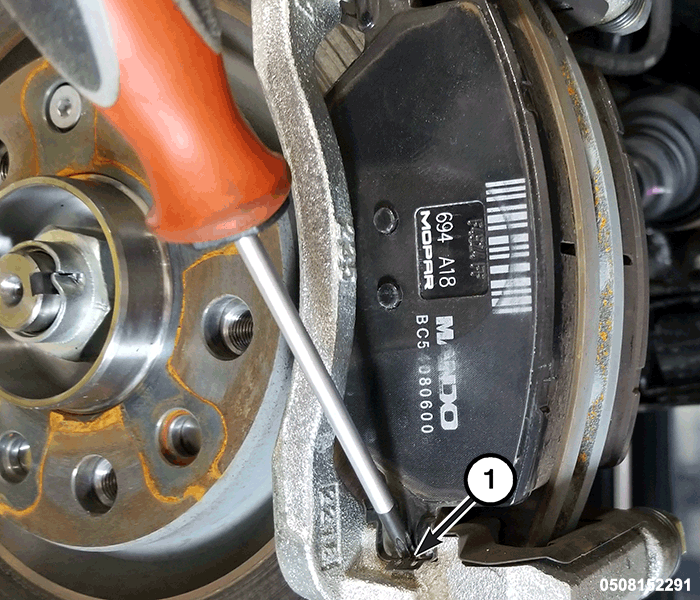

  4. Using a suitable tool, release the brake pad tabs (1) for brake pad removal.
    GC0188879Courtesy of CHRYSLER GROUP, LLC
  5. Remove the inner brake pad (1) from the caliper adaptor.
  6. Remove the outer brake pad (2) from the caliper adaptor.
