Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

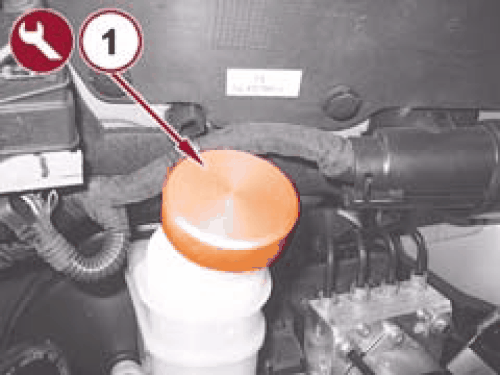

- Remove the master cylinder cap (1), and install the vacuum tool 2000001400.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL .
- Remove the appropriate brake hose from the caliper. Refer to TUBES AND HOSES, BRAKE, REMOVAL AND INSTALLATION .

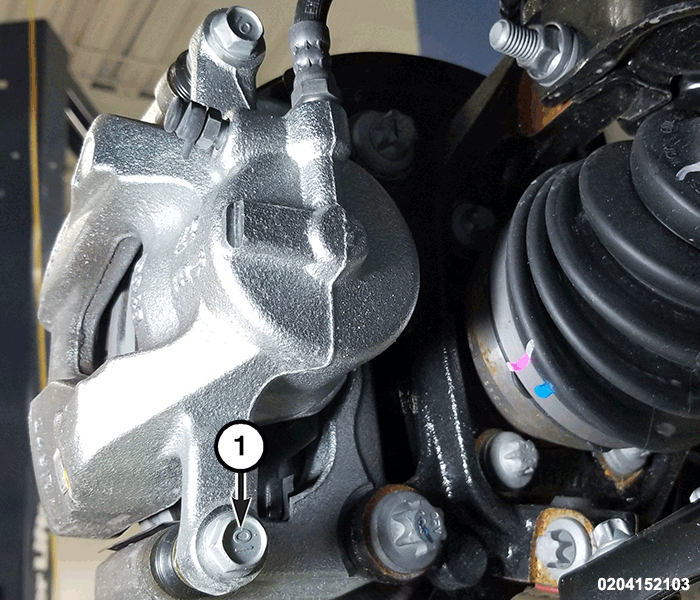

- Remove the caliper to caliper adaptor bolts (1) and remove the caliper.
- If necessary, transfer the brake pads.
