Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

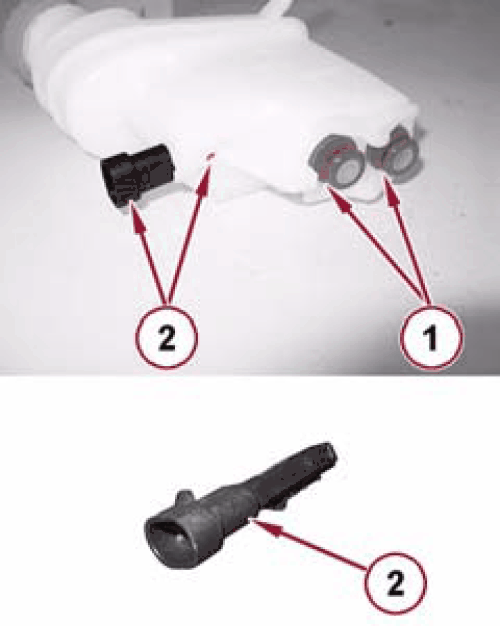

GC0169174Courtesy of CHRYSLER GROUP, LLC
  1. Install the brake fluid level switch (2) into the brake fluid reservoir securely until the tang (2) engages.

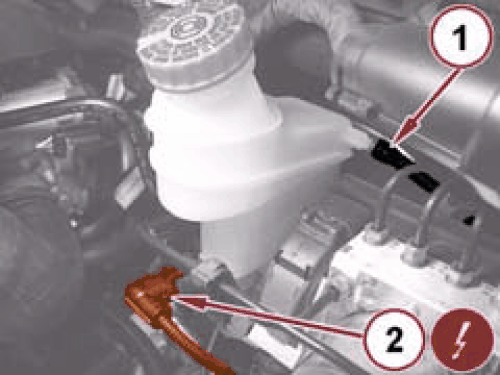

    GC0169379Courtesy of CHRYSLER GROUP, LLC
  2. Connect the brake fluid level switch electrical connector (2).
  3. Fill and bleed the braking system. Refer to STANDARD PROCEDURE .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
