Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0169366Courtesy of CHRYSLER GROUP, LLC
NOTE:

If the alarm siren module has been replaced with a new unit, a diagnostic scan tool MUST be used to initialize and configure the new unit in the Body Control Module (BCM) before the Vehicle Theft Security System (VTSS) can operate as designed. Follow the programming steps outlined in the diagnostic scan tool for INITIALIZE SIREN  under MISCELLANEOUS FUNCTIONS  for the BODY CONTROL MODULE/BCM  menu item as appropriate.

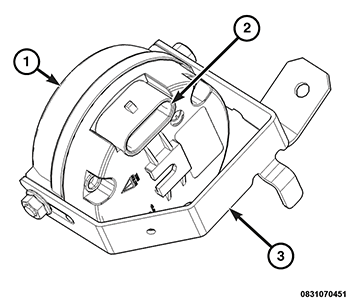

  1. Position the alarm siren module (1) and mounting bracket (3) as a unit to the engine compartment side of the dash panel, below the driver side windshield.
  2. Install and tighten the fastener that secures the mounting bracket to the dash panel. Tighten the fastener securely.
  3. Connect the headlamp and dash wire harness connector to the connector receptacle (2) of the siren.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
