Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

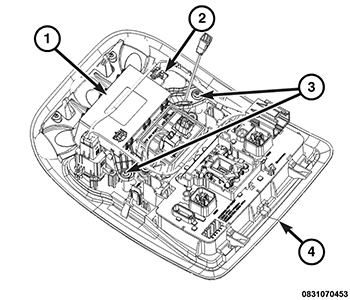

GC0169396Courtesy of CHRYSLER GROUP, LLC
  1. Position the UAM (1) to the overhead console (4).
  2. Install and securely tighten the fasteners (3) that secure the mounting tabs of the UAM to the overhead console.
  3. Connect the overhead console wire harness connector (2) to the UAM.
  4. Install the overhead console to the headliner. Refer to CONSOLE, OVERHEAD, FRONT, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
