Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the hose at washer pump to drain the windshield washer fluid from the vehicle.

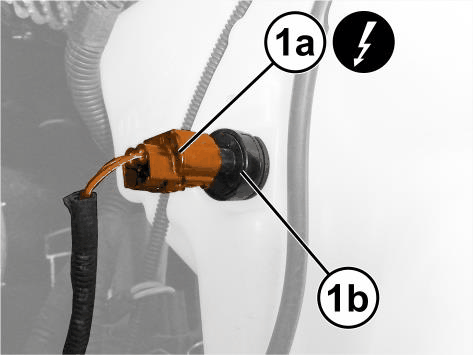

    GC0189046Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the windshield washer fluid level switch wire harness connector (1a).
  5. Remove the washer fluid level switch (1b) from the washer bottle.
