Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

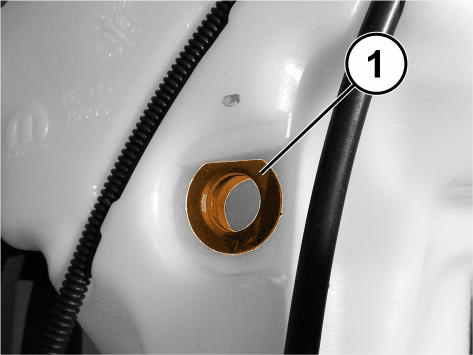

- Replace the rubber seal for the windshield level sensor (1).
- Check that the windshield washer fluid level switch is not damaged.

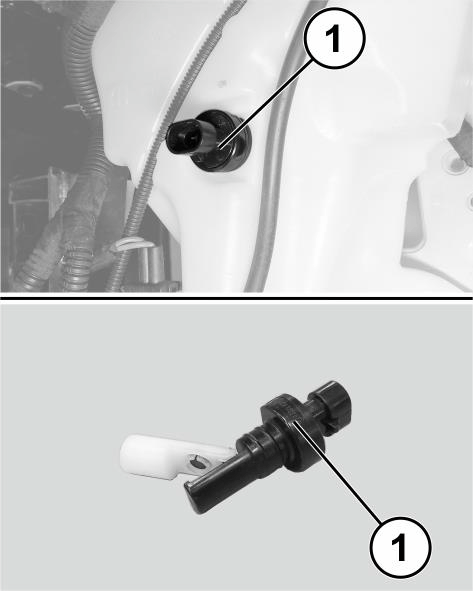

- Insert the windshield washer fluid level switch (1) in place, aligning its profile with that of the reservoir seat.
- Connect the windshield washer fluid level switch wire harness connector.
- Remove the support and lower the vehicle.
- Connect the negative battery cable.
