Filler Neck: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Locate the filler neck of the washer reservoir in the left front corner of the engine compartment.
- Observe the level of the washer fluid through the translucent filler neck and reservoir. If the washer fluid level is above the base of the filler neck, siphon the washer fluid into a clean container for reuse until it is below the base of the filler neck.

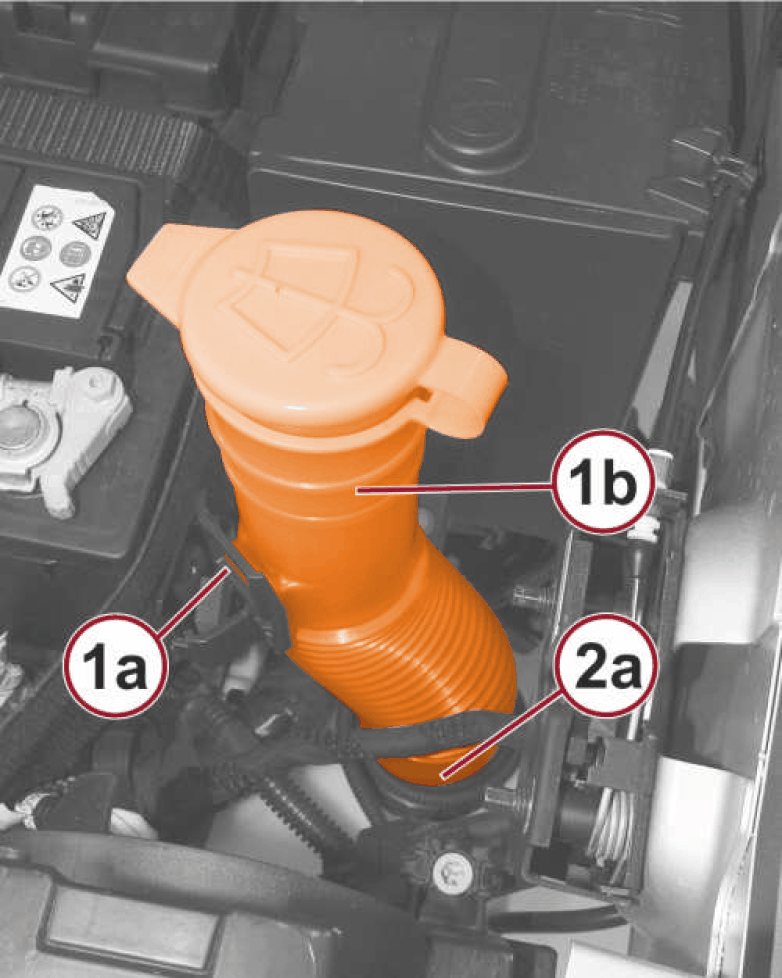

- Disengage the latch tabs of the retainer (1a) on the filler neck (1b) from the stanchion on the outboard front corner of the battery tray.
- Use a back and forth twisting action to disengage the base (2a) of the filler neck from the filler neck fitting on the top of the reservoir.
- Remove the filler neck, retainer and filler cap from the engine compartment as a unit.
