Front Washer Nozzle: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Position the front washer nozzle (2) to the mounting hole from the outside of the hood panel.
- Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches snap into place on the inside surface of the hood panel.
- Connect the supply hose (1b) to the front washer nozzle nipple.

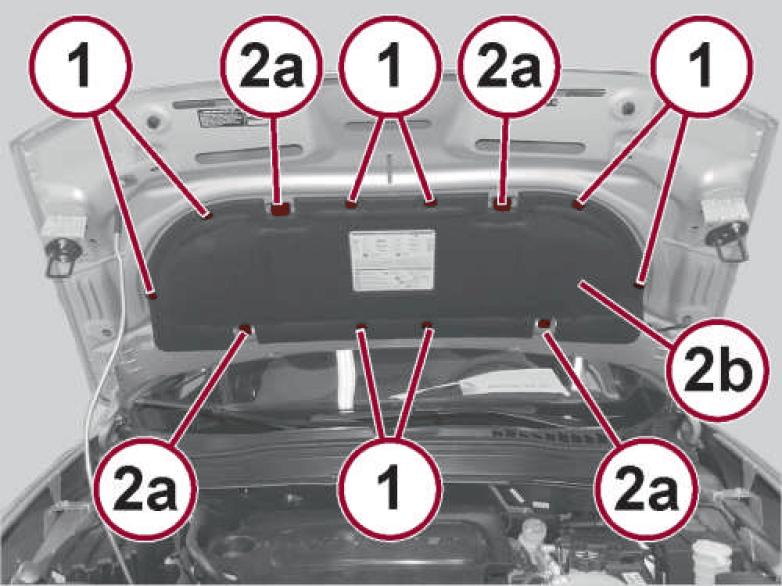

- Engage the tabs (2a) of the hood silencer pad (2b) into the slots in the inner hood panel reinforcement.
- Install the retainers (1) that secure the silencer pad to the inner hood panel reinforcement.
