Rear Washer Nozzle: Description

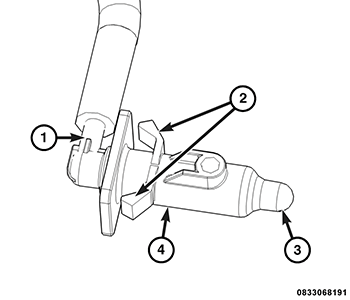

The rear washer fluid nozzle (4) is constructed of molded plastic. The rear washer nozzle is secured by two integral latch features (2) within a dedicated mounting hole located in the inner structure of the spoiler panel above the liftgate glass opening. The spoiler must be removed from the liftgate to access the rear washer nozzle for service.
The rear washer nozzle orifice (3) is oriented downward towards the liftgate glass through an elongated oval opening in the outer surface on the underside of the spoiler and located just to the left of the Center High Mounted Stop Lamp (CHMSL). The washer plumbing fitting (1) is concealed between the liftgate outer panel and the spoiler.
The rear washer nozzle cannot be adjusted or repaired. If ineffective or damaged, the entire nozzle unit must be replaced.
