Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Avoid touching the sensitive surface of the LRSM.
    NOTE:

    The layer of silicone material is protected by a film that is removed when the component is installed. Avoid hand contact to prevent damage to the silicone. Because it is not possible to disconnect and reconnect the part without damaging the silicone layer, the LRSM should be replaced if the windshield is replaced.

  2. Avoid the sensitive surface of the LRSM coming into contact with dirt or fluids.
    NOTE:

    If a new component is installed, check that no air bubbles remain between the glass and LRSM; apply a load of at least 50 N (11 lbf) to be certain that any bubbles are eliminated.

  3. Clean the housing for the LRSM in the windshield thoroughly. Use a degreasing product.
  4. Place the LRSM in position.
  5. Position the retaining clip for the LRSM and attach the side hooks.
  6. Connect the LRSM wire harness connector.

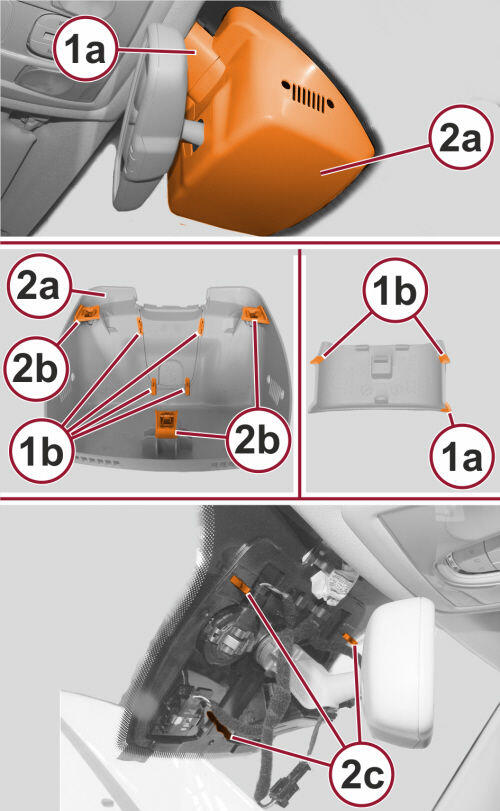

    GC0166112Courtesy of CHRYSLER GROUP, LLC
  7. Position the lower trim cover (2a) from the bottom. Make sure the tabs (2c) engage fully.
  8. Install the middle trim and engage the clips (1b).
  9. Insert the bottom of the upper mirror trim (1a) and engage the clips (1b).
  10. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
