Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

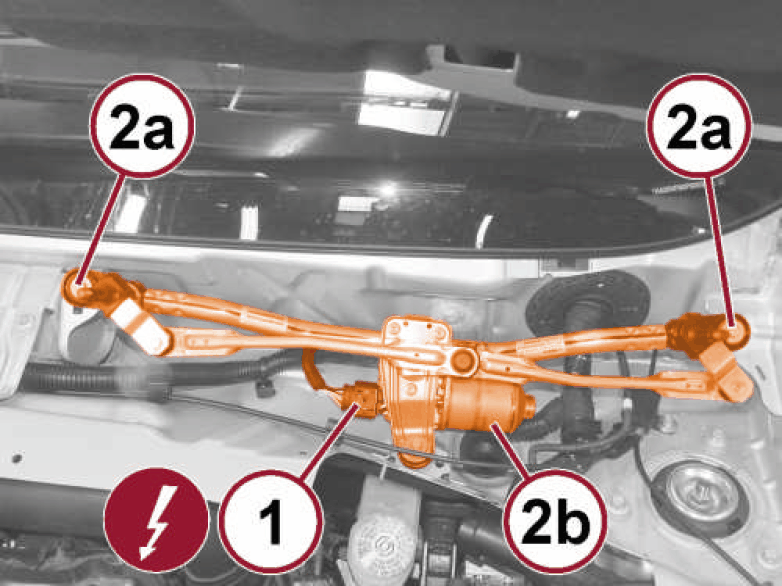

GC0169528Courtesy of CHRYSLER GROUP, LLC
NOTE:

The front wiper linkage module includes the front wiper motor.

  1. Position the front wiper linkage module (2b) into the cowl plenum as a unit.
  2. Install and tighten the fasteners (2a) that secure the module bracket to the cowl plenum. Tighten the fasteners to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the front wiper motor wire harness connector (1) to the front wiper motor.
  4. Install the cowl plenum cover/grille panel over the front wiper linkage module. Refer to COVER, COWL PANEL, INSTALLATION .
  5. Transition the ignition to the On status, then turn the front wiper switch On and Off again to cycle the wiper motor and linkage to their natural park position before installing the front wiper arms onto the wiper pivots.
  6. Install both front wiper arms onto the wiper pivots. Refer to FRONT WIPER ARM, INSTALLATION  .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
