Rear Wiper Blade: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

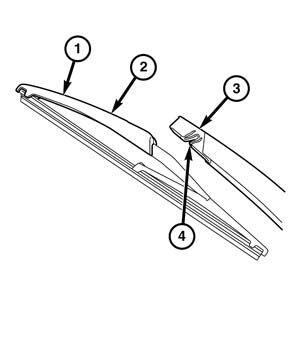

- Lift the tip of the rear wiper arm (3) from the liftgate glass.
- Position the rear wiper blade (1) with the pivot pin (2) aligned with the opening of the latch features (4) under the tip of the wiper arm.
- Using hand pressure, press the wiper blade pivot pin firmly and evenly into the wiper arm latches until it snaps into place.
- Lower the wiper blade to the glass.
