Rear Wiper Arm: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be certain that the rear wiper motor is in the park position before attempting to install the rear wiper arm.
- Transition the ignition switch to ON and move the rear wiper switch to its OFF position. If the wiper motor output shaft moves, wait until it stops moving, then transition the ignition back to OFF. The wiper motor is now in its park position.

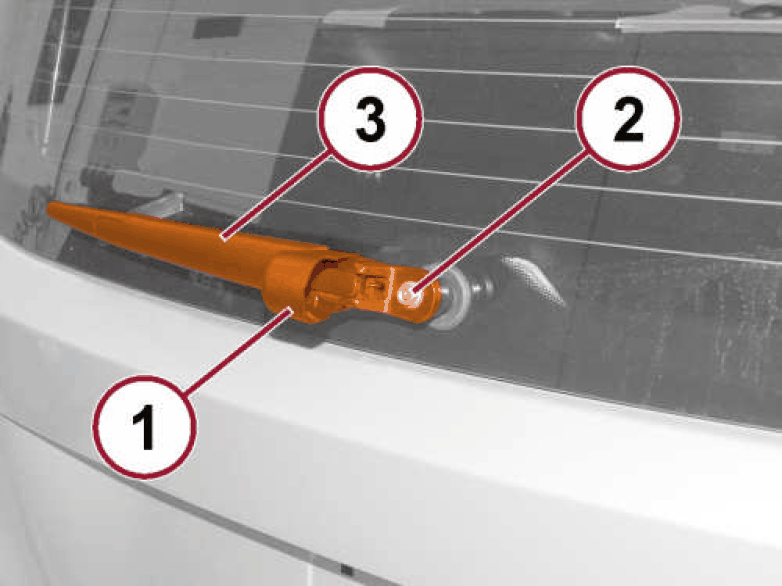

- The rear wiper arm (3) must be indexed to the rear wiper motor output shaft with the motor in the park position to be properly installed. Position the wiper arm pivot end to the motor output shaft so that the tip of the wiper blade is aligned with the wiper alignment mark, which is a horizontal T mark located within the upper margin of the blackout area at the bottom of the liftgate glass.
- With the rear wiper arm properly indexed, push the tapered mounting hole on the pivot end of the wiper arm down over the output shaft.
- Install the nut (2) that secures the rear wiper arm to the output shaft. Tighten the nut to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Fold and snap the molded plastic nut cover (1) down over the nut on the pivot end of the rear wiper arm.
- Wet the liftgate glass and operate the rear wiper. Turn the rear wiper switch to the OFF position, then check for correct wiper arm position and readjust as required.
