Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION, 1.3L .

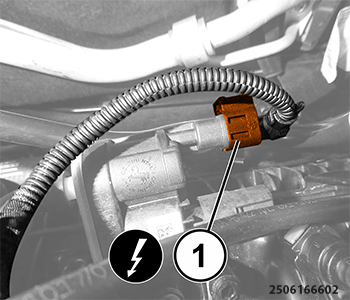

    GC0191635Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (1) from the OBD vent valve.

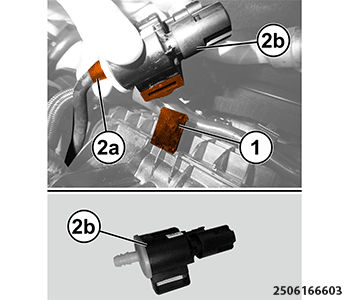

    GC0191668Courtesy of CHRYSLER GROUP, LLC
  4. Remove the OBD vent valve from the mounting tab (1) on the intake manifold.
  5. Remove the fuel vapor hose (2a) from the OBD vent valve (2b).
