Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
    GC0164424Courtesy of CHRYSLER GROUP, LLC

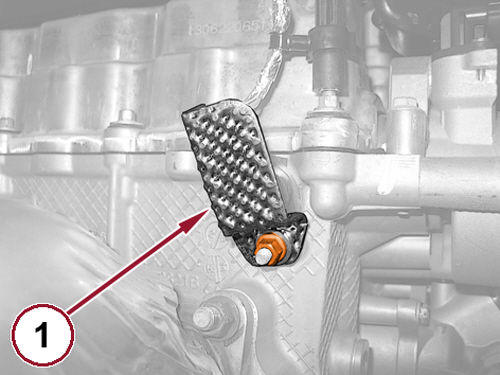

  3. Remove the nut and remove the heat shield (1).
    GC0163500Courtesy of CHRYSLER GROUP, LLC

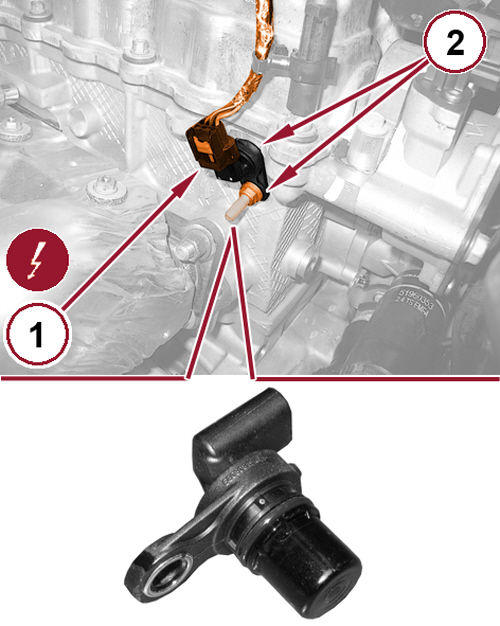

  4. Disconnect the camshaft position sensor wire harness connector (1).
  5. Remove the nut (2) and remove the camshaft position sensor.
