Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the air cleaner body. Refer to
BODY, AIR CLEANER, REMOVAL AND INSTALLATION
.NOTE:
Mark the positions of the ignition coils so they can be installed in the same cylinder.
- Unlock and disconnect the ignition coil wire harness connectors (1).

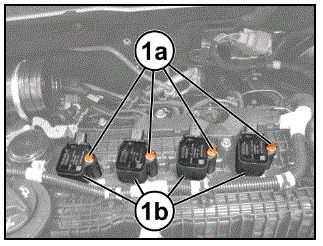

- Remove the bolts (1a) and remove the ignition coils (1b).
