Auxiliary Water Pump: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  3. Remove the right front wheel splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  4. Drain the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 1.3L  .

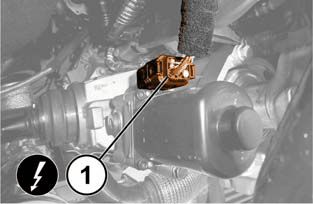

    GC0188722Courtesy of CHRYSLER GROUP, LLC
  5. Unlock and disconnect the PTU wire harness connector (1).

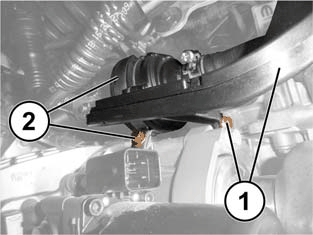

    GC0189513Courtesy of CHRYSLER GROUP, LLC
  6. Remove the wiring duct bolt (1) from the PTU mounting bracket.
  7. Remove the collar bolt from the auxiliary water pump mounting bracket (2) and reposition the collar.

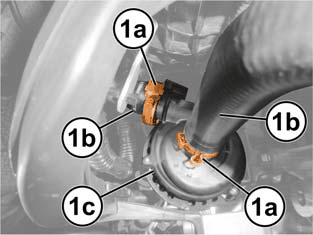

    GC0189414Courtesy of CHRYSLER GROUP, LLC
  8. Loosen the band clamps (1a) and remove the hoses (1b) from the auxiliary water pump (1c).

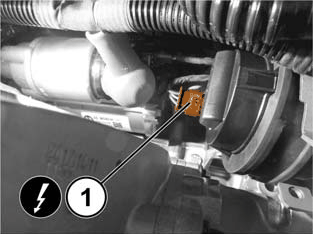

    GC0190174Courtesy of CHRYSLER GROUP, LLC
  9. Unlock and disconnect the auxiliary water pump wire harness connector (1).

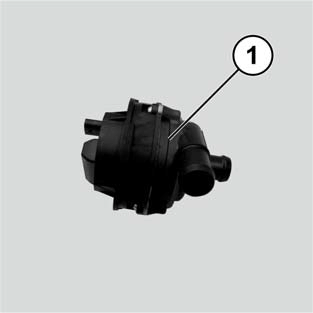

    GC0188887Courtesy of CHRYSLER GROUP, LLC
  10. Remove the auxiliary water pump (1).

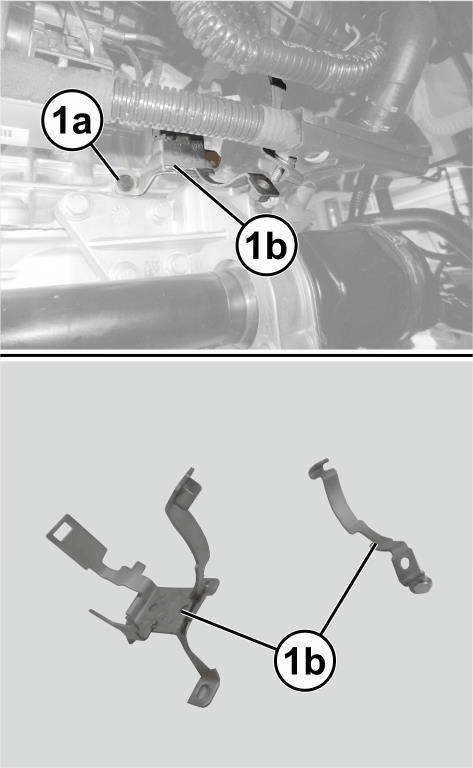

    GC0207982Courtesy of CHRYSLER GROUP, LLC
  11. If required, remove the bolts (1a) and remove the auxiliary water pump bracket (1b).
