Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

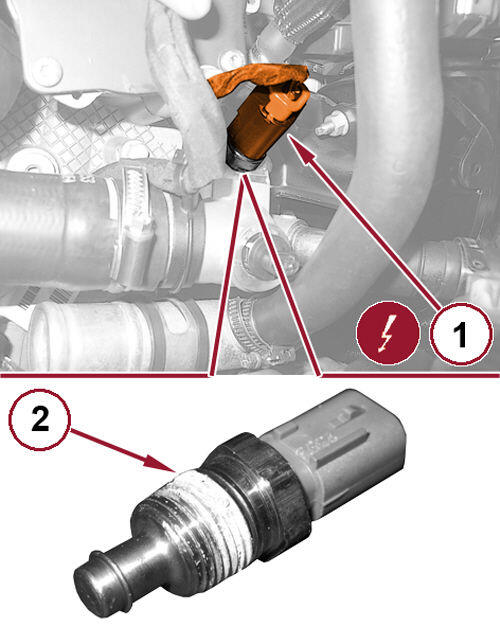

GC0165413Courtesy of CHRYSLER GROUP, LLC
  1. Install the engine coolant temperature sensor (2) and tighten the sensor to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  2. Connect the engine coolant temperature sensor wire harness connector (1).
  3. Fill the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .
  4. Install the battery. Refer to BATTERY, REMOVAL AND INSTALLATION .
  5. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
