Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

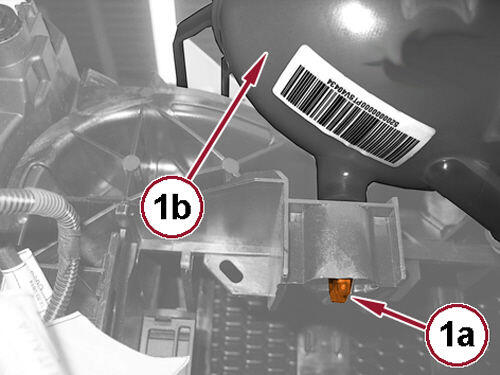

- Install the pressurized coolant bottle (1b) and secure with the retainers (1a).

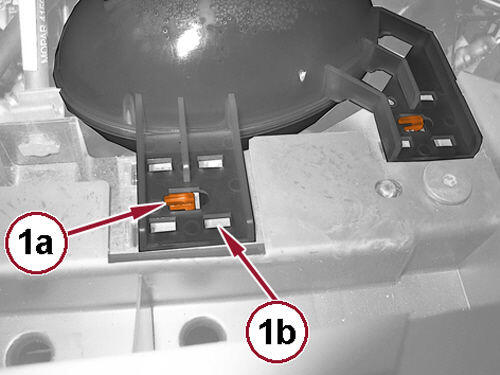

- Slide the pressurized coolant bottle to the right and secure with retainers (1b). Push the retainers (1a) to lock bottle in place.

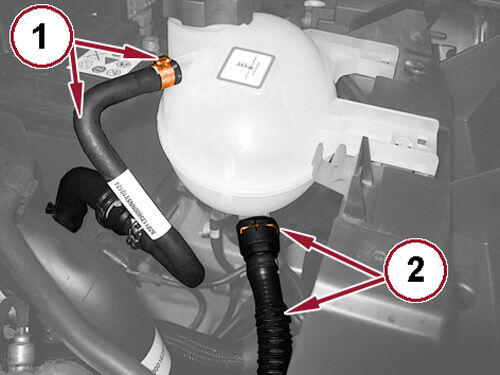

- Install the coolant hose (2) onto the pressurized coolant bottle and secure the retainer.
- Install the degas hose (1) onto the pressurized coolant bottle and position the clamp.
- Fill the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L .
- Run the engine until it reaches normal operating temperature. Check cooling system for leaks and correct fluid level. Refer to ADDING ADDITIONAL COOLANT .
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
