Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the generator. Refer to GENERATOR, REMOVAL
.

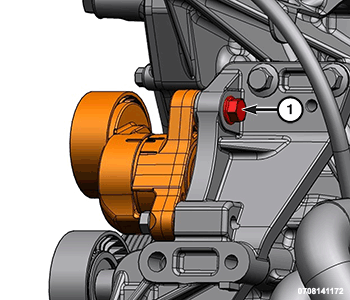

- Remove the upper tensioner bolt (1).

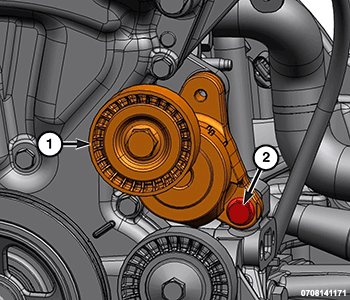

- Remove the lower tensioner bolt (2) and remove the tensioner (1).
