Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the right front tire and wheel assembly. Refer to REMOVAL
.CAUTION:
Do not let the tensioner arm snapback to the fully extended position, severe damage may occur to the tensioner.

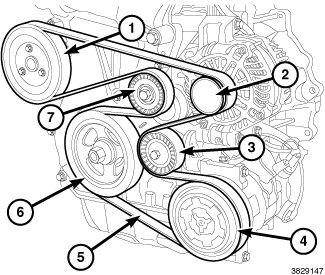

- Release the belt tension by rotating the center bolt of the tensioner pulley (7) counterclockwise, lift the belt off one of the pulleys and slowly release the tensioner to the fully extended position.
- Reposition the accessory drive belt (5).

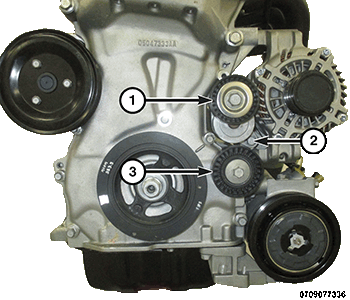

- Remove the bolt and the idler pulley (3).
