Description And Operation: Description

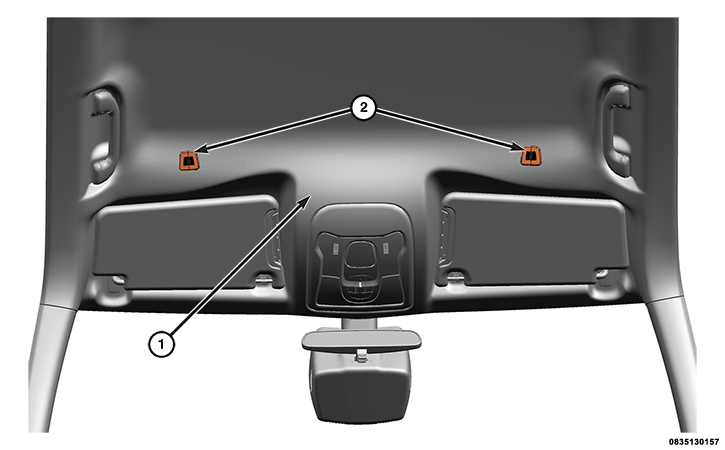

Vehicles equipped with the optional hands free system have two stereo microphones (2) mounted in the headliner (1) just above the driver and front passenger, one to each side of the headliner. The two microphones are individually powered by and provide hardwired inputs to the Radio Receiver Module (RRM) in the instrument panel whenever the Voice Recognition (VR) feature of the hands free system is active. These two microphones are connected to the vehicle electrical system through a dedicated take out and connector of the overhead wire harness.
In vehicles equipped with the optional Uconnect® system using the SiriusXM® Guardian™ connected vehicle services, the overhead console houses both a SOS push button and an Assist push button.
The microphone cannot be adjusted or repaired and, if damaged or ineffective, it must be replaced.
