Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the steering column. Refer to COLUMN, REMOVAL .

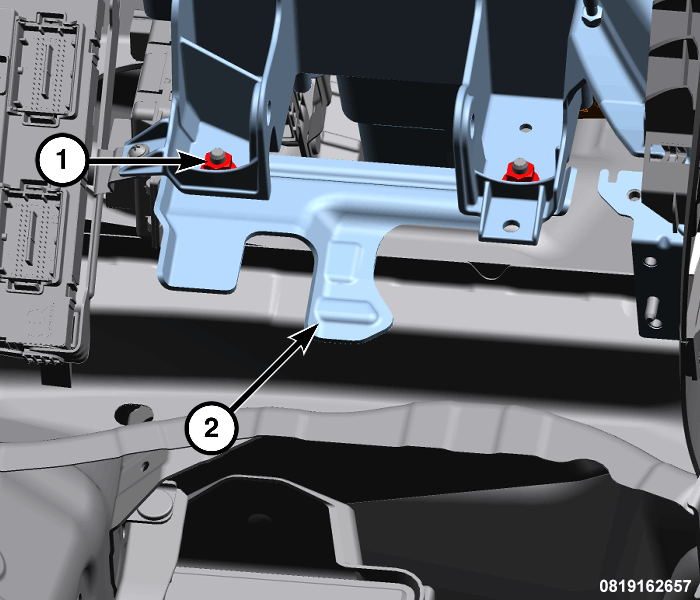

    GC0189049Courtesy of CHRYSLER GROUP, LLC
  3. Working under the instrument panel, remove the fasteners (1) that secure the carrier reinforcement bracket (2) to the instrument panel carrier. Remove carrier bracket (2) from the vehicle.

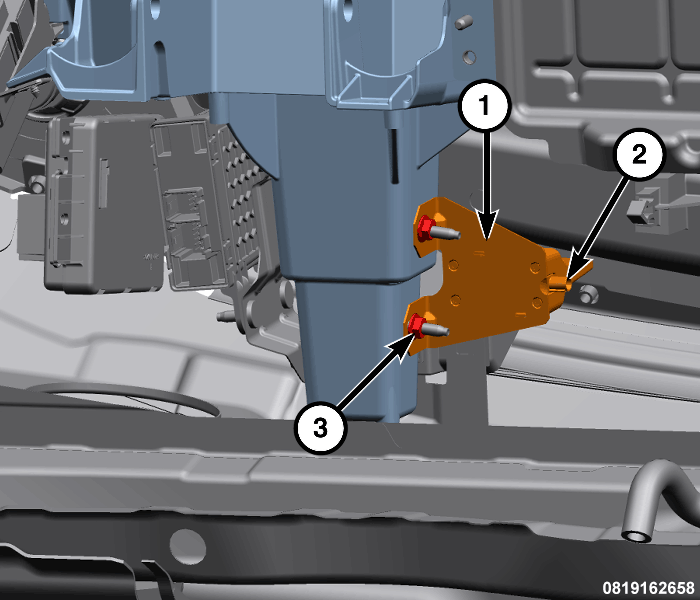

    GC0188732Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness connector (2) from the Long Term Evolution 2 (LTE2) antenna and bracket (1).
  5. Remove the fasteners (3) securing the LTE2 antenna (1) to the instrument panel carrier.

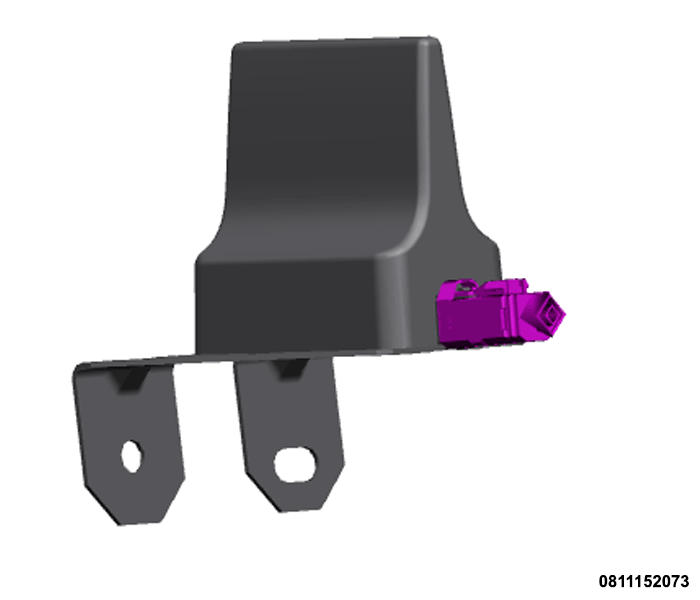

    GC0189605Courtesy of CHRYSLER GROUP, LLC
  6. Remove the LTE2 antenna and bracket from the vehicle.
