Description And Operation: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

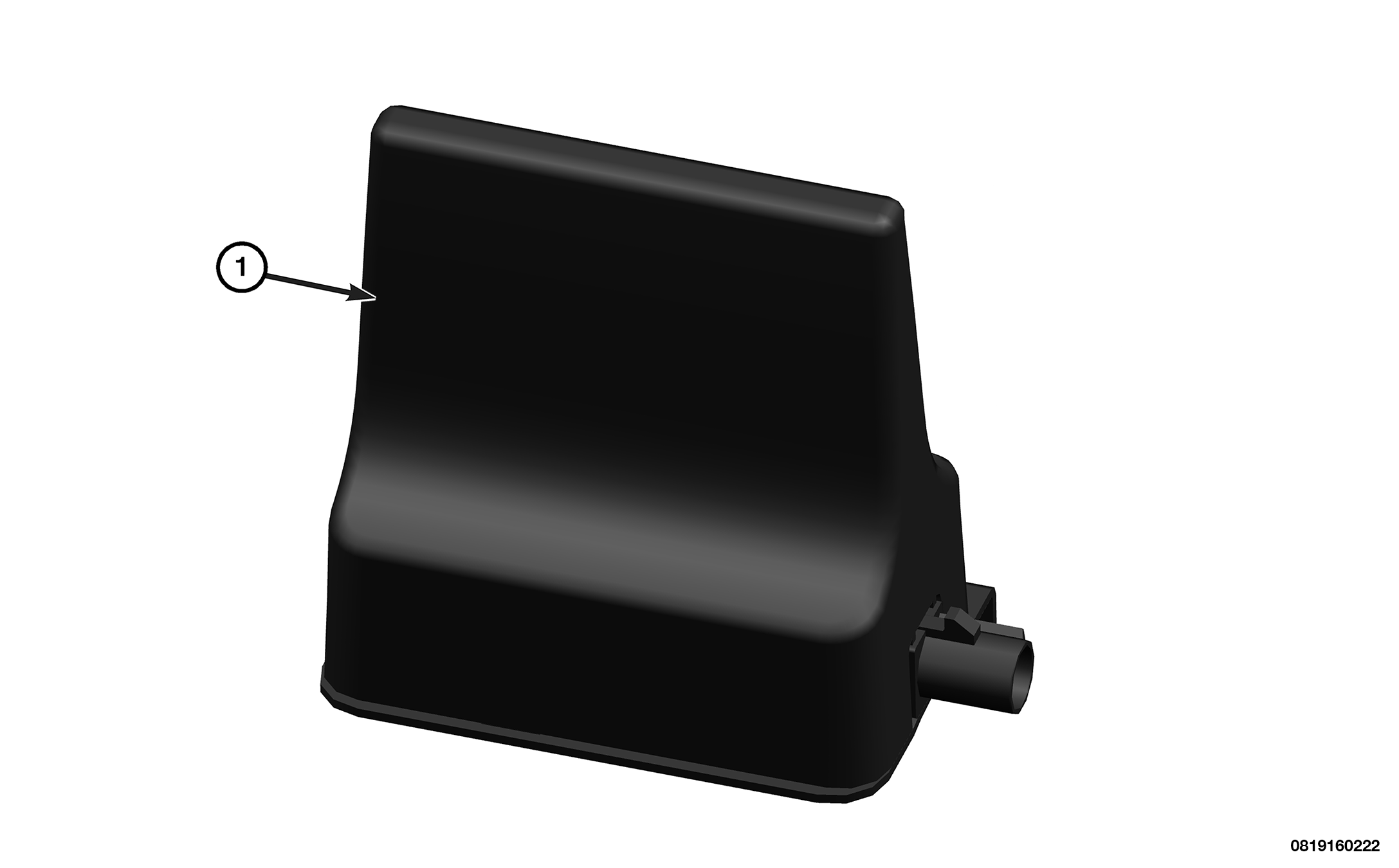

The Long Term Evolution 2 (LTE2) antenna (1) is mounted in the instrument panel, on the inboard side of the instrument panel carrier to bulkhead support. The LTE2 antenna is a second cellular telephone antenna, used in conjunction with the LTE1 antenna which is built into the combination antenna, for sending and receiving cellular telephone signals and data. The signals and data are supplied to the radio and telematics modules. The use of two LTE antennas is for the purpose of increasing data upload and download speeds.
