Description And Operation: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

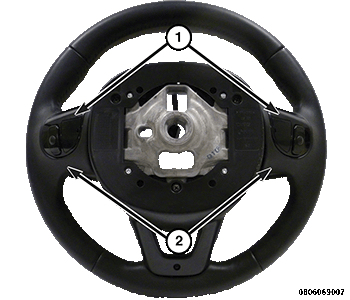

The remote radio switches (1) are mounted to the back (instrument panel side) of the horizontal steering wheel spokes (2). Each switch includes a momentary rocker with a momentary push button located in the center, between the two ends of the rocker.
The right switch includes the following functions:
- Volume Up
- Mode
- Volume Down
The left switch includes the following functions:
- Seek Up
- Preset
- Seek Down
The remote radio switches (1) can not be adjusted or repaired and, if ineffective or damaged, the entire switch unit must be replaced.
