Removal And Installation: Subwoofer: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0163649Courtesy of CHRYSLER GROUP, LLC

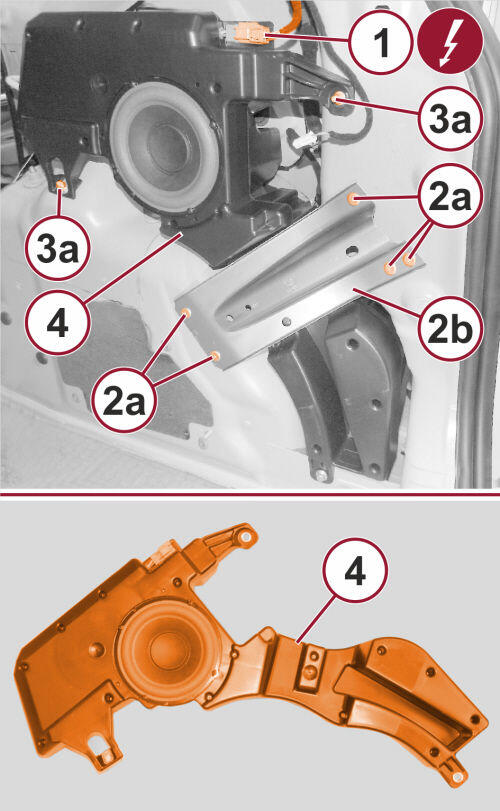

  1. Position the subwoofer assembly (4) into the cargo area.
  2. Install and securely tighten the fasteners (3a) for the subwoofer (4).
  3. Connect the subwoofer assembly wire harness connector (1).
  4. Position the right rear quarter trim panel support bracket (2b) and install the five fasteners (2a). Securely tighten the fasteners.
  5. Install the right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
