Instrument Panel End Speaker: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

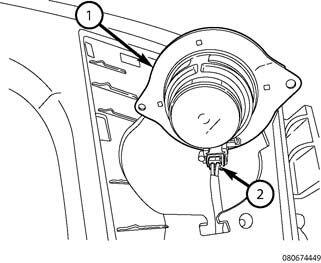

GC0154461Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (2) and install the speaker (1).

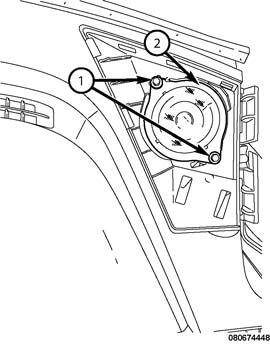

    GC0154390Courtesy of CHRYSLER GROUP, LLC
  2. Install and securely tighten the speaker (2) mounting fasteners (1).
  3. Install the instrument panel outer speaker grill.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
