Description And Operation: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
The base six speaker system includes speakers in six locations as standard equipment for all radios.
- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters (1) located in the instrument panel
- Two 15.2 x 23 centimeter (6 x 9 inch) speakers (2) located in the front door panels
- Two 15.2 x 23 centimeter (6 x 9 inch) speakers (3) located in the rear door panels

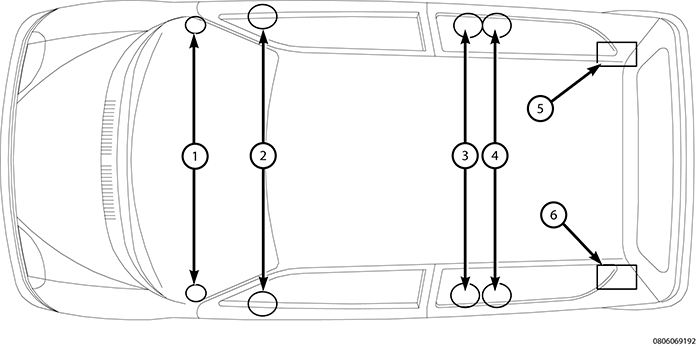

As an option, the premium nine speaker Beats® by Dre 506 watt system includes speakers in nine locations and an amplifier for the 8.4 inch radio. In certain markets, a premium nine speaker and amplifier system by Alpine is used.
- Two 8.89 centimeter (3.5 inch) (1) diameter midrange tweeters located in the instrument panel
- Two 15.2 x 23 centimeter (6 x 9 inch speakers (2) located in the front door panels
- Two 2.54 centimeter (1 inch) (3) diameter tweeters located in the rear door panels by the door handles
- Two 15.2 x 23 centimeter (6 x 9 inch) speakers (4) located in the rear door panels
- One 16.51 centimeter (6.5 inch) subwoofer (5) located behind the right side quarter trim panel
- Eight channel 506 watt power amplifier (6) located behind the left side quarter trim panel
