Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.NOTE:
Be certain to take the proper precautions to prevent the floor console and instrument panel from receiving cosmetic damage during the following procedures.
- Remove the front floor console from the vehicle. Refer to CONSOLE, FLOOR, REMOVAL .

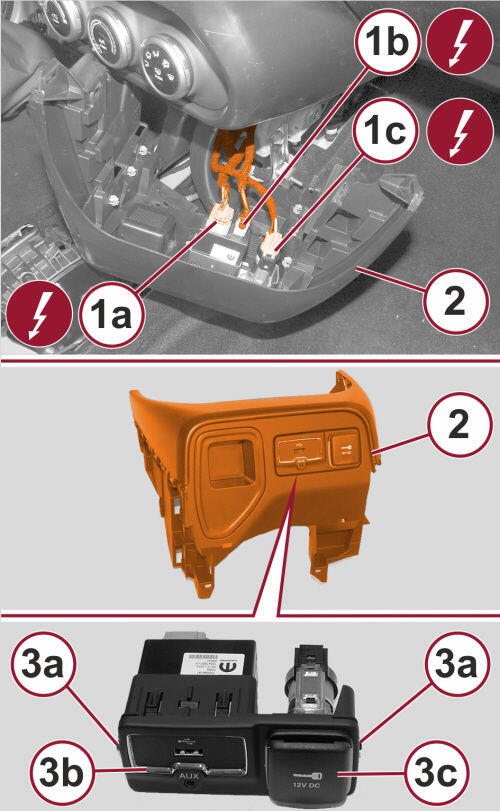

- Roll the trim panel (2) of the lower instrument panel to gain access to the wire harness connectors and disconnect the wire harness connectors (1a, 1b and 1c).
- Working from the back side of the lower instrument panel trim panel (2), release the retaining clips (3a) and remove the bezel with the USB/AUX sockets (3b) and 12V outlet (3c).
