Description And Operation: Description

The possibility of connecting devices for audio playback on the vehicle can be performed by means of:

• a Media Hub in the front of the center console (standard)
• a remote USB port in the center console (if equipped)
• auxiliary power outlets (APO) placed in front and rear load areas

Media Hub

Courtesy of CHRYSLER GROUP, LLC

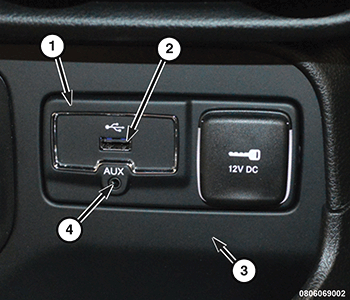

The media hub (1) is located in the forward surface of the center console (3). The media hub is a centralized connection point in the vehicle that contains:

• a 3.5 millimeter auxiliary audio input jack (4)
• a powered USB port (2)
  NOTE:

  The powered USB port provides 5 volts at 1.5 amperes to charge the battery of a connected media device.

Only the molded plastic media hub faceplate and the connection ports are visible within the center console. The media hub housing, wiring and connections to the vehicle electrical system are concealed on the underside of the console. Two latch tabs integral to the media hub housing secure the unit on the back side of the mounting hole in the console.

Remote USB Port

Courtesy of CHRYSLER GROUP, LLC

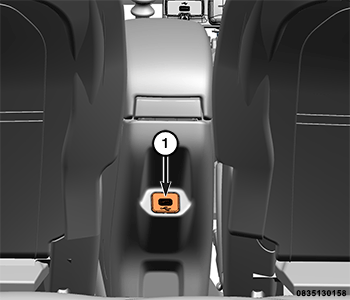

There is also a USB port on the rear of the center console. On certain models, this is a charge only port.

For USB sources the system can play files with the following extensions and formats:

• MP3 (32 - 320 Kbps)
• WAV
• WMA (5 - 320 Kbps) mono and stereo
• AAC (8 - 96 KHz) mono and stereo
• M4A (8 - 96 kHz) mono and stereo
• M4B (8 - 96 kHz) mono and stereo
• MP4 (8 - 96 kHz) mono and stereo

For all USB sources, the system can also play the following Playlist formats:

• M3U
• WPL

The media hub and remote USB port cannot be adjusted or repaired. If either is ineffective or damaged it must be replaced.
