Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.

Courtesy of CHRYSLER GROUP, LLC

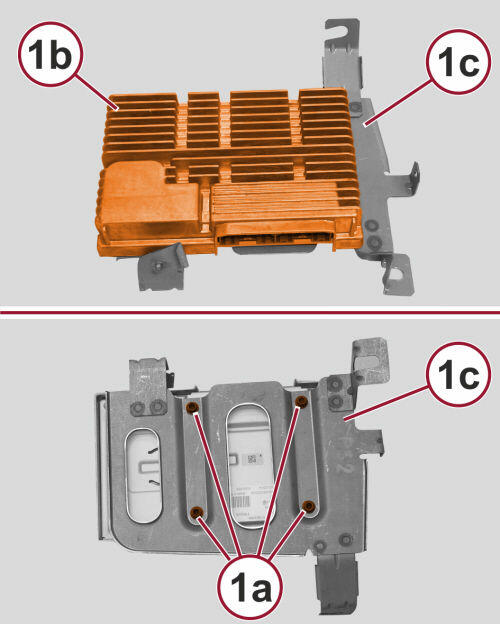

Position the amplifier (1b) to the mounting bracket (1c) and install the four fasteners (1a). Tighten the fasteners securely.

Courtesy of CHRYSLER GROUP, LLC

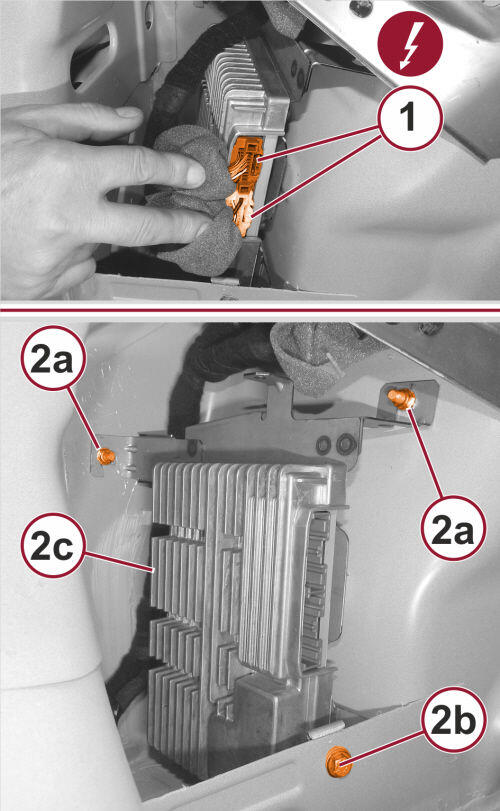

Position the assembled amplifier and mounting bracket (2c) and install the three fasteners (2a and 2b). Tighten the fasteners securely.
Connect the amplifier wire harness connectors (1). Position the foam harness protectors in place.
Install the left side quarter panel trim. Refer to PANEL, QUARTER TRIM, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
